2.54mm Pitch Single Row Wafer Connector Series

2.54mm Pitch Single Row Wafer Connector Series

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

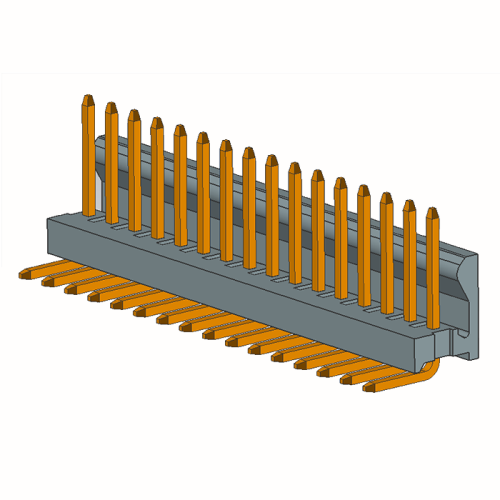

Shenzhen Antenk Electronics Co., Ltd. introduced 2.54mm Pitch Single Row Wafer Connector Series

SPECIFICATIONS
·Voltage Rating：250V AC.DC
·Current Rating：2A AC,DC
·Contact Resistence:3.0mΩ Max
·Withstanding Voltage：2200V AC/minute
·Insulation Resistance:5000MΩ min
·Temperature Range：-40℃-+130℃

WAFER
·Part NO：AW2541S-XP AW2541R-XP
·Material：Pin：Brass/Tin over Nickel
0.64SQ L=14.5MM
Terminal Retenion：2.0KG(MIN)
Insulator：Nylon 66，UL94V-0 White
·Mates With：AH2541-XP Series Housing
·Sloder:245±0.5°C 4±0.5S
