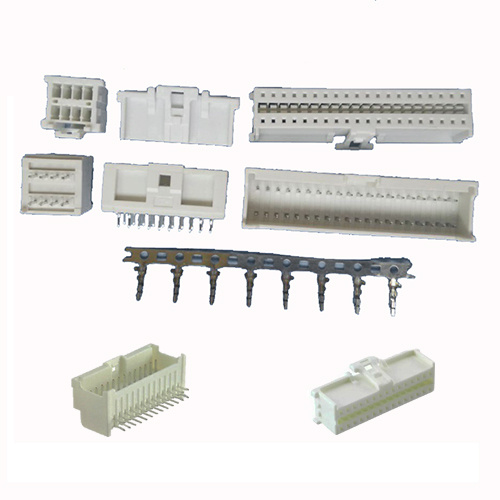

2014 Series 2.00mm Pitch Wafer Connector

Shenzhen Antenk Electronics Co., Ltd. introduced

2014 series, 2.0mm pitch wire-to-board electronic connectors.

2014 Series Connector
Ideal for board-to-board and wire-to-board low-power and signal applications,2014 Series connectors provide a flexible design and cost-saving solutions for a variety of applications. Signal application 2014 Series connectors are ideal for use in industries such as automotive, medical and consumer, delivering up to 3.0A and 250V per circuit in a 2.50mm centerline pitch. Dual-cantilever terminals offer a square-post contact area that interfaces with the male pin header through a spring-like contact. Available in 22 to 30 AWG wire, an optional box-style dual-cantilevered terminal is optimal for high-vibration applications.
Headers are available in single-row, unshrouded, through-hole PCB termination styles in solid and breakaway varieties. A friction lock is available for a more secure mating interface. 2014 Series receptacles are available in right-angle, top-entry and board-through configurations. Housings have built-in polarization features and are available

SPECIFICATIONS
·Voltage rating：250V AC/DC
·Current rating：3A,AC/DC(22#AWG)
·Withstanding Voltage：1000V AC/minute
·Insulation resistance:1000MΩ min
·Temperature range：-25℃-+85℃
·Contact Resistance:20mΩ MAX

WAFER
·Part NO：AW2014R-2XX
·Poles:8-40(Right Angle,Double Row)
·Material：Length PIN:Phos Bronze,Tin Plated
           Short Pin:Brass,Tin Plated
    Brass:(4*2-14*2)PBT+15%G.F UL94V-0
          (15*2-20*2)PBT+15%G.F UL94V-0
·Mating Housing:AW2014H-2XX
·Mating Terminal：AW2014TX
·Parking：Tube Packing
