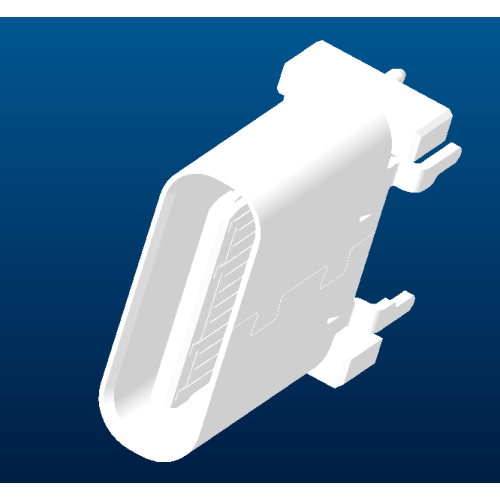

USB3.1 24P Female Waterproof Full SMT offset type

USB3.1 24P Female Waterproof Full SMT offset type

NOTE:
1. ELECTRICAL CHARACTERISTICS:1. MATERIAL:
MOLDING: LCP UL94 V-0
CONTACT: COPPER ALLOY.
PLATED GOLD ON CANTACT AREA,
G/F GOLD ON SOLDER AREA,
50u"”NICKEL PLATING OVER ALL.
SHELL: SUS304 -H, T=0. 30土0.03mm
50u" NICKEL PLATING OVER ALL.
EMI SHILD: SUS304 -H, T=0.12土0.03mm
LATCH: SUS301-H, T=0.15土0.03m
2. MECHANICAL :
INSERTION: 5 ~20N.
EXTRACTION: 8* 20N.
DURABILITY: 10000 CYCLES
3. ELECTR ICAL:
CURRENT: 5A MAX FOR VBUS;
1. 25A FOR GND,0.25A FOR OTHER OTHER.
VOLTAGE: 20VDC MAX
WITHSTANDING VOLTAGE: 100V AC.
CONTACT RESISTANCE: MAX.40mΩ MAX
INSUL ATION RES ISTANCE: 100MΩ MIN.
4. ENVIRONMENTAL
TEMPERATURE RANGE: -55° C TO +80°C
