0.8mm Series 68P For PCB Clip

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/Month
Supply Ability:	2000K/Month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

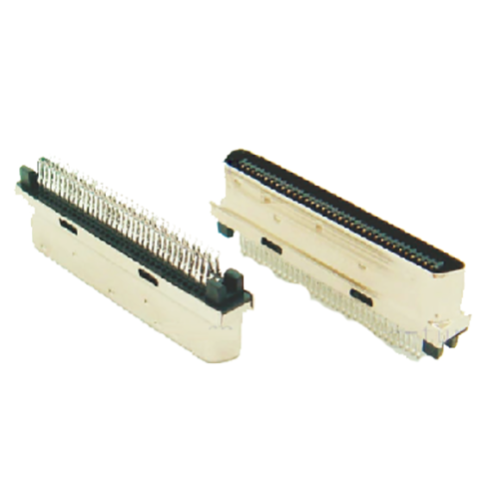

0.8mm Series 68P For PCB Clip Molded Type

Specifications:

1.Electrical Characteristics:
1.1 Contact Current Rate:0.5AMP
1.2 Insulation Resisitance:500MΩ Minimum
1.3 Contact Resistance:35mΩ Maximum
1.4 Dielectric Voltage:250V AC For One Minute
2.Material:
2.1 Insulator:PBT+30%G/F
2.2 Contact:C5191-H
2.3 Board Lock:Phosphor Bronze ,Gold Selective Plated
2.4 Bracket:Steel Nickel Plated Over Copper
3.Enviroment:

Operation Temperature: -55°C To +105°C

0.8mm Series 68P For PCB Clip Molded Type VHDCIS-M68X
