USB 3.1 C TYPE TPC6P SMT L6.8 Receptacle

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

Shenzhen Antenk Electronics Co., Ltd. launched a

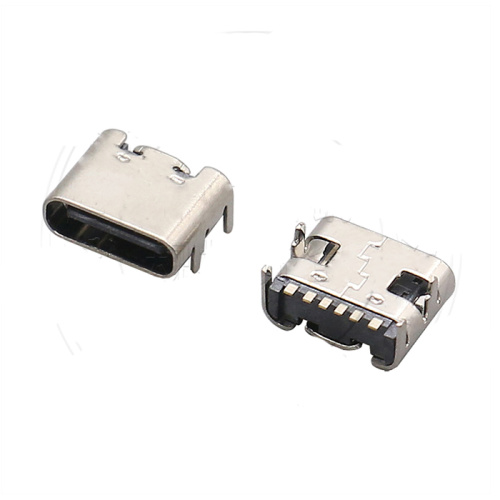

USB 3.1 C TYPE TPC6P SMT L6.8 Receptacle

U3.1FM10-BLXXXX

SPECIFICATIONS:
1.MATERIAL
INSULATOR:THERMOPLASTIC,Black UL94V-0
CONTACT:COPPER ALLOY
SHELL:COPPER ALLOY
2.CONTACT PLATING
UNDERPLATE:40U"-80U"Nickel
CONTACT AREA:30U"Pd-Ni+2U",Selective Gold,
SOLDER TAIS AREA:100U"-200u"Tin(Lead Free)
3.ELECTRICAL:
CURRENT RATING:3A MAX
OPERATION VOLTAGE:20V
WITHSTANDING VOLTAGE:100V AC/MIN
INSULATION RESISTANCE:100MΩ MIN@100VDC
4.Mechanical:
Mating Force:5-20Nf MAX
UnMating Force:6-20Nf Min
Durability:10000 Cycles
5.ENMPONMENTAL
TEMPERATURE RANGE -40°C~+85°C
Wetting Temperature:265±5°C 5±0.5S

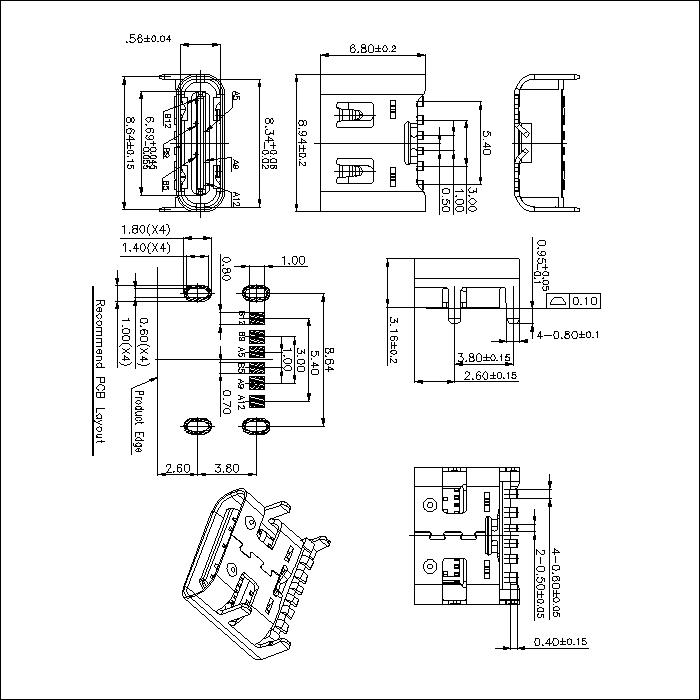

U3.1FM10-SLXXXX USB 3.1 C TYPE Receptacle Without Rear Cover Type Insertion Distance 6.20MM

U3.1FM10-SLXXXX USB 3.1 C TYPE Receptacle Without Rear Cover Type Insertion Distance 6.20MM
