USB 3.1 CTYPE Receptacle Type 24P FEMALE

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: ShenZhen, ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	ShenZhen,ShenZhen

Product Description

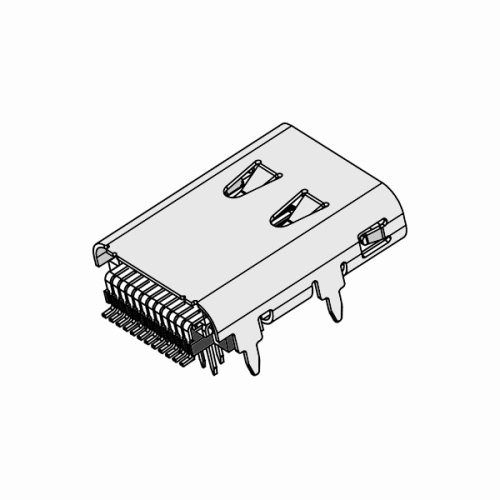

USB 3.1 C TYPE Receptacle W/O Rear Cover Type
Insertion Distance 6.20MM 24P FEMALE

U3.1FM09-SLXXX

SPECIFICATIONS:
1.MATERIAL
INSULATOR:THERMOPLASTIC,Black
CONTACT:BRASS
SHELL:STAINLESS STEEL
2.CONTACT PLATING
UNDERPLATE:40U"-80U"Nickel
CONTACT AREA:30U"Pd-Ni+2U",Selective Gold,
SOLDER TAIS AREA:100U"-200u"Tin(Lead Free)
3.ELECTRICAL:
CURRENT RATING:5A MAX
OPERATION VOLTAGE:20V
WITHSTANDING VOLTAGE:100V AC/MIN
INSULATION RESISTANCE:100MΩ MIN@100VDC
4.ENMPONMENTAL
TEMPERATURE RANGE -40°C~+105°C
MATING CYCLES:10000 INSERTION
U3.1FM09-SLXXXX USB 3.1 C TYPE Receptacle Without Rear Cover Type Insertion Distance 6.20MM
