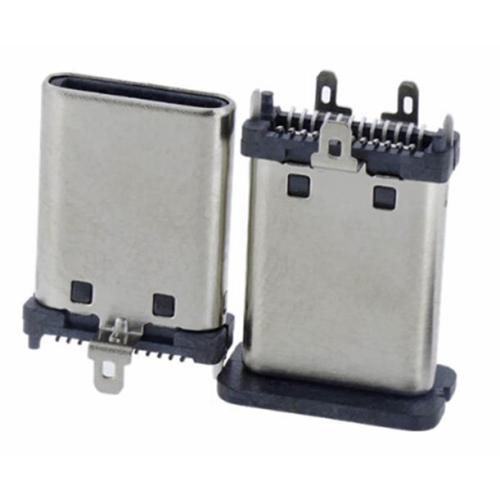

USB3.1 Plug Type C Vertical Dip

U3.1MS04-SLXXX USB3.1 Plug Type C Vertical Dip Specifications

Electical:1.Electical:1.Electical:1.Electical Characteristic:1.Material:
  Molding:LCP UL94V-0
  Contact:Copper alloy
  Gold plated min on contact area,100u" min
  tin(lead free) ,on solder area
  Shell:SUS304-H,T=0.30±0.03mm 50u" nickel plating over all
  Shild:SUS304-H,T=0.12±0.03mm
2.Mechanical:
  Insertion:5  20N
  Extraction:8  20N  after test
  Durability:10000 cycles
3.Electrical:
  Current Rating:5A for VBUS
  1.25A for GND pin
  0.25A for other
  Voltage:20V max
 Withstanding Voltage: 100V AC r.m.s
 Contact Resistance: 40mΩ Max
 Insulation resistance:100MΩ Min
4.Environmental:
 Temperature range:-25℃  +85℃

USB 3.1 Type C Male DIP Connector Feature:

Compliant to USB 3.1 standard
High quality LCP plastic
Male connector
High quality Gold-plated terminal
SMT/SMD Through Hole mount

 Right angle 90 degree SMT USB 3.1 Type C male plug Dimensions:

Antenk Type-C connector including male,female connector and Shell:
USB-C Male connector covers
USB 3.1 Type-C Male plug,
USB 3.1 Type-C R/A Male SMT plug,
USB 3.1 Type-C SMT Vertical male Plug;
USB-C Female connector covers:
USB 3.1 Type-c mid-mount receptacle
USB 3.1 Type C top-mount receptacle
USB 3.1 Type-c vertical mount receptacle
