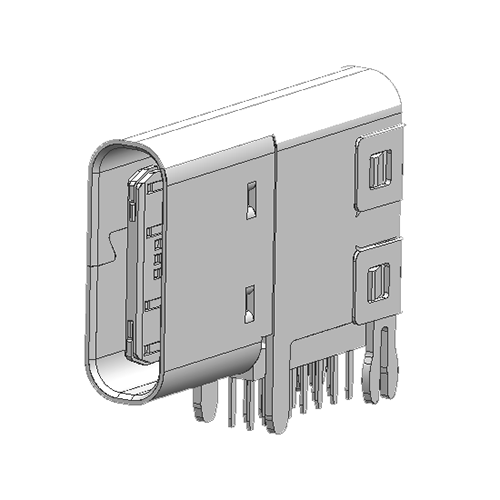

USB3.1 90° Receptacle C Type Shell

Ttype C 3.1 Female Seat 14pin 90°

Electical:1.Electical:1.Electical:
  1.1 Current Rating:3A
  1.2 Contact Resistance: 40 Milliohm Max.
  1.3 Dielectric Withstanding Voltage: 100V AC AT Sea Level
  1.4 Insulation Resistance: 100 Megohms Min.
2.Material:
  2.1 Housing:LCP, Glass Fiber Filled, Black
  2.2 Contact:Copper Alloy
  2.3 Guard Plate:Stainless Steel,T=0.10mm
  2.4 Shield: Stainless Steel (t=0.30mm).
3.Finish:
  3.1 Contact:30u" Gold  Plating On Contact Area
                120u" Min. Tin(Matte) Plating On Soldertails
                Area 80u" Min. Nickel Underplating Over All
  3.2 Shell:Nickel Plating
4.Mechanical Characteristics:
  4.1 Mating Force:5-20N Max.
  4.2 Unmating Force:8-20N Min.
  4.3 Durability:10000 Cycles

USB3.1 90° Receptacle C Type Shell  Dimensions:
