Power D-SUB 9W4 20A FEM Solder

Description of Antenk D-Sub Mixed Contact Connectors PDB9W4-FXXX  Power D-SUB 9W4 20A FEM Solder

Combo D-sub,Straight/180°,Female/Jack,Power D-sub,9W4,Through Hole,PCB Mount,Solder Type

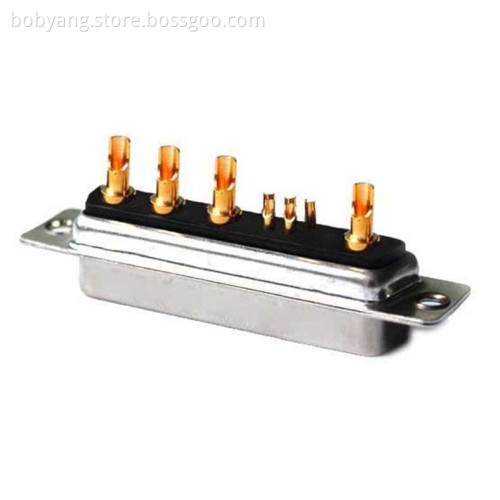

9W4 D-sub mixed contact connectors from Antenk is a 9W4 Combination D-sub Plug with Tin/Ni or Au finished steel shell, mixed-layout and PBT thermoplastic, 30% glass filled, UL94V-O rated insulator. Solder cup contact termination. Application in Agriculture & Construction Equipment, Harsh Environment, Machine Manufacturing, Medical, Robotics & Automation, Transportation.

Specification of Antenk large current power d-sub female 9W4 connector

Features of Antenk  D-Sub Connector 20 A 9 Position High Power 9 Pin Combo Receptacle Socket Female Machined 9W4 Gold Panel Mount Wire Solder:

Combo D-sub,Straight/180°,Female/Jack,Power D-sub,9W4,Through Hole,PCB Mount,Solder Type;
Space saving,Cost-effective;
Large variety of mounting options,RoHS Compliant;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Application of Antenk D SUB Female 9W4 Power Connector 180° Through Hole Solder Type For PCB Mount:
medical electronics
wireless outdoor telecom systems
industrial automation
oil exploration
printers and displays
diagnostic systems

Drawing of D-Sub Connector 30 AMP 8 High Power Position Combo Receptalce Socket Female Machined Connector Gold Flash Panel Mount Wire Solder Cup

POWER Dsub Mixed Contact Connectors

POWER Dsub mixed contact connectors are designed for rugged/robust applications where both power & signal are required from a single connection.
Featuring "Solid-Pin" machined contacts, these connectors offer high-reliability performance for the most challenging design applications

POWER Dsub Connectors Features
Allows signal, high current & high voltage in one connector
Available in 3 termination types
Screw Machined Contacts for High Mating Cycles
Also available in IP67 Option
POWER Dsub  Connectors Applications
Wireless Base Stations
Satellite Base Stations
Broadband Network Infrastructure
RF Power Amplifiers
DC/DC Power Supplies
DC Motor Controllers
Industrial Robotics
Servo Control Systems
Laboratory Metrology (Test & Measurement)
Mechanical
All Contacts are Preloaded (Board & Cable Mount)
Contact Insertion Force: 4.5Kg Max.
Contact Separator Force: 0.3Kg Min.
Process Temperature: 230°C
Operating Temperature: -55°C to +155°C
