Power D-Sub 7W2 Solder Cup Female

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,L/C
Incoterm:	FOB,CIF,EXW
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

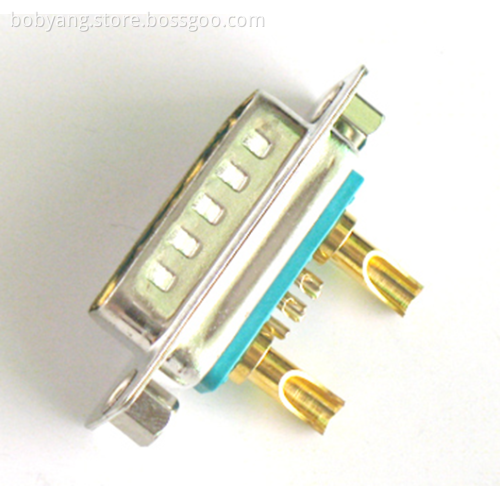

Description of Antenk Power D-Sub 7W2 Solder Cup Female

Combo D-sub,Straight/180°,Female/Jack,Power D-sub,7W2,Through Hole,PCB Mount,Solder Type

7W2 D-sub mixed contact connectors from Antenk is a 7W2 Combination D-sub Plug with Tin/Ni or Au finished steel shell, mixed-layout and PBT thermoplastic, 30% glass filled, UL94V-O rated insulator. Solder cup contact termination. Application in Agriculture & Construction Equipment, Harsh Environment, Machine Manufacturing, Medical, Robotics & Automation, Transportation.

Specification of Antenk 7W2 7 Position Straight Solder Cup D-Sub Power Connectors

Product Category:	D-Sub Mixed Contact Connectors
Product Type:	Mixed Contact D-Sub Connectors
Subcategory:	D-Sub Connectors
Contact Arrangement:	7W2
Number of Positions:	7 Position
Mounting Style:	Panel
Mounting Angle:	Straight
Termination Style:	Through Hole
Current Rating:	10/20/30/40 A
Gender:	Female
Number of Rows:	2 Row
Voltage Rating:	1.5 kV
Insulation Material:	Polybutylene Terephthalate (PBT)
Contact Plating:	Gold
Contact Material:	Copper Alloy
Shell Plating:	Tin
Shell Material:	Steel
RoHS:	Compliant
Electrical Characteristics
Current Rating:	Signal & Power Contacts 300 VRMS at 50 Hz
Frequency range:	0 -1 GHz
VSWR:	1.4 (+0.04/GHz)
Characteristic Impedance:	50 Ohms
Dielectric Withstanding Voltage	≥ 1000V R.M.S. at 50Hz
Insulation Resistance	≥ 5000 megaohms at 500 V D.C.
Contact Resistance	≤5 milliohms
Mechanical Characteristics
Mechanical operations :	up to 500
Environmental Characteristics
Operating Temperature:	67°F (-55°C) to 311°F (+155°C)
	with peaks up to 356°F (180°C)

Features of Antenk D SUB Female 7W2 Power Connector 180° Through Hole Solder Type For PCB Mount:
Combo D-sub,Straight/180°,Female/Jack,Power D-sub,7W2,Through Hole,PCB Mount,Solder Type;
Space saving,Cost-effective;
Large variety of mounting options,RoHS Compliant;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Application of Antenk D SUB Female 7W2 Power Connector 180° Through Hole Solder Type For PCB Mount:
medical electronics
wireless outdoor telecom systems
industrial automation
oil exploration
printers and displays
diagnostic systems

Drawing of D SUB Female 7W2 Power Connector 180° Through Hole Solder Type For PCB Mount

PDB7W2-FXXX POWER D-SUB 7W2 SOLDER CUP-FEMALE

POWER Dsub Mixed Contact Connectors
POWER Dsub mixed contact connectors are designed for rugged/robust applications where both power & signal are required from a single connection.
Featuring "Solid-Pin" machined contacts, these connectors offer high-reliability performance for the most challenging design applications

POWER Dsub Connectors Features
Allows signal, high current & high voltage in one connector
Available in 3 termination types
Screw Machined Contacts for High Mating Cycles
Also available in IP67 Option
POWER Dsub Connectors Applications
Wireless Base Stations
Satellite Base Stations
Broadband Network Infrastructure
RF Power Amplifiers
DC/DC Power Supplies
DC Motor Controllers
Industrial Robotics
Servo Control Systems
Laboratory Metrology (Test & Measurement)
Mechanical
All Contacts are Preloaded (Board & Cable Mount)
Contact Insertion Force: 4.5Kg Max.
Contact Separator Force: 0.3Kg Min.
Process Temperature: 230°C
Operating Temperature: -55°C to +155°C
