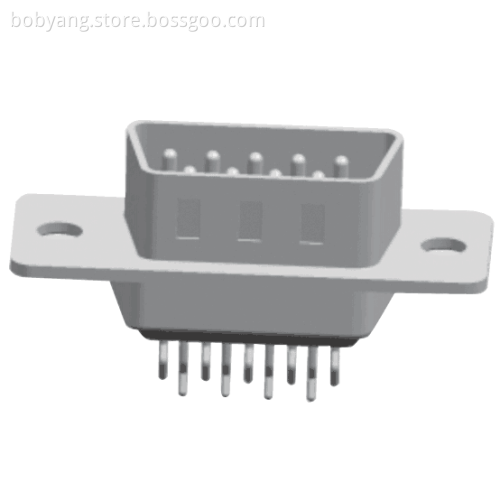

D-SUB PCB Male Dual Row Straddle(stamped Pin)

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000K/month
Supply Ability:	10000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	ISO9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

Manufacturer :ANTENK ELECTRONICS.,CO LTD.

ANTENK D-Sub connectors / contacts are manufactured in plug or receptacle gender with 50 Ohm impedance. D Sub contacts are available in straight or right angle versions, as well as, mount-less options. These D-Sub contact designs include crimp/solder, solder or solder/solder attachment methods.

ANTENK D-Sub connectors /contacts (or D sub-miniature connectors / contacts) category includes 56 part numbers, most of which are RoHS and REACH compliant. D-Sub contacts / connectors in this category will terminate to coax or PCB (printed circuit board). Our D sub-miniature contacts are built to precise microwave and RF industry specifications.

Our ISO 9001:2008 and ISO 9001:2015registered production facility ships D subminiature connectors / contacts the same day from the broadest and deepest in stock inventory of RF and microwave parts. Exceptional customer service and technical support are available to assist our customers.

SPECIFICATION

Material:

Housing: Temperature Thermoplastics,PBT+G.F UL 94V-0

Contact: Brass or Bronze

Shell: 0.35T Steel Nickel Plating All Area

Electical Characteristics:

Current Rating :5A

Contact Resistance:20 Milliohms Max

Withstanding Voltage:500V AC For 1 Minute

Insulation Resistance :1000 Mehms Min

Operating Temperature:-55℃ to +105℃
