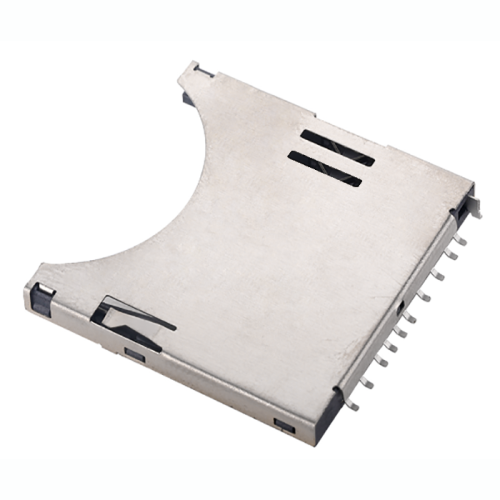

SD Series 2.75mm Height Connectors

Shenzhen Antenk Electronics Co., Ltd. promoted a SD Series 2.75mm Height Connector
ATK-SSIM275A001
1.MATERIAL:
 1.1 Insulator:LCP,UL 94V-0,BLACK
 1.2 Cam Silder:LCP,UL 94V-0,BLACK
 1.3 Shell:Stainless Steel,SUS
 1.4 Terminal:Phosphor Bronze,C5191
 1.5 Spring:SUS301
 2.Plating:
 2.1 Contact；Plated 50u"min NI Overall Au 1U"
              Plated 1u" Au Selective contact area
 2.2 Shell: Plated 50u" Ni Overall
3.Property:
 3.1 Current Rating:0.5A AC/DC Max
 3.2 Voltage Rating:125V AC/DC
 3.3 Ambient Temperature Range:-20℃ to +60℃
 3.4 Storage Temperature Range:-40℃ to +70℃
 3.5 Ambient Humidity Rang:95％ R.H Max
 3.6 Contact Resistance:100mΩ max
 3.7 Insulation Resistance:1000MΩ min./500VDC
 3.8 Mating Cycle:10000 Insertions
 3.9 Temperation Cycles:260°C °C S<1,70>°C S<1,70>+5°C/-5°C
