MICRO SD CARD Series 1.28mm Height Connector

Get Latest Price

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

Manufacturer :ANTENK ELECTRONICS., CO. LTD.

High quality, competitive price, fast delivery, quick reply. UL, Rohs, Reach passed.

Enterprise slogan: a group of people, one heart, work together, will win
Corporate Mission: Connecting the World and Connecting the Future
Corporate Vision: Become the First Brand of Famous Connectors
Values: Diligence, Gratitude and Honesty

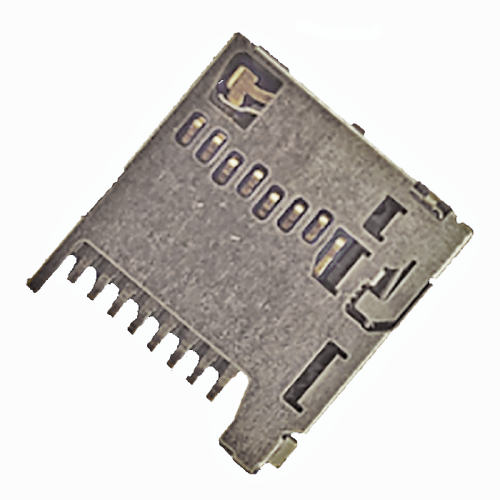

Product name：MICRO SD CARD Series 1.28mm Height Connector

ATK-MSIM128A033

1.MATERIAL:
1.1 Insulator:High Temperature Thermoplastic,
LCP SZ6505 black 94V-0
1.2 Contact:Beryllium copper(7035-tm06, T=0.15mm)
1.3 Shell:SUS301-3/4H T=0.10mm
2.Plating:
2.1 Contact；Plated 80u"min NI Overall
Plated 1u"min Au Selective contact area
2.2 Shell:Solder tail plated 1u"min AU overll 50u"min Ni
3.Property:
3.1 Current Rating:0.5A AC/DC max
3.2 Voltage Rating:12V AC/DC
3.3 Ambient Temperature Range:-20℃ to +60℃
3.4 Ambient Humidity Rang:95％ R.H Max
3.5 Contact Resistance:100mΩ max
3.6 Insulation Resistance:1000MΩ min./500VDC
3.7 Durability:5,000 cycles
