1.27mm NP Receptacle Headers Right-Angle

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

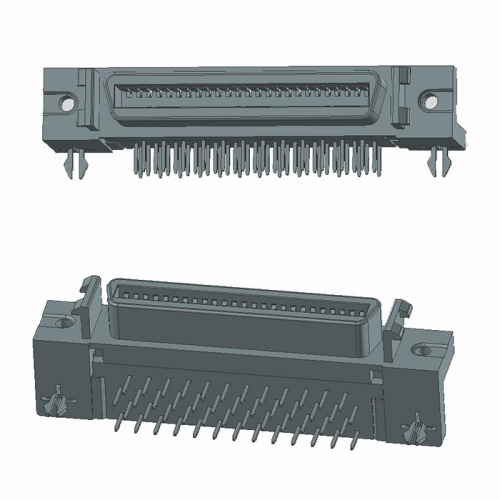

1.27mm Series NP Receptacle Headers Right-Angle Mount Ribbon Type

Specifications:

1.Electrical Characteristics:
1.1 Contact Current rate：1A
1.2 Insulation resistance:500MΩ Min
1.3 Contact resistance：35mΩMax
1.4 Dielectric Voltage:500V AC For One Minute
2.Material:
2.1 Insulator:PBT+30%G/F
2.2 Contact:Copper alloy T=0.30
2.3 Board Lock:Copper alloy T=0.50
2.4 Bracket:ZINC alloy
3.Finish
3.1 Shell:Nickel Plated Over Copper
3.2 Contact:Gold Plating
3.3 Board Lock:Nickel Plated

Operation Temperature:-55℃ To +125℃

1.27mm Series NP Receptacle Headers Right-Angle Mount Ribbon Type HPCNR-FXXXX
