2.16mm Centronic Right Angle Female Connector

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

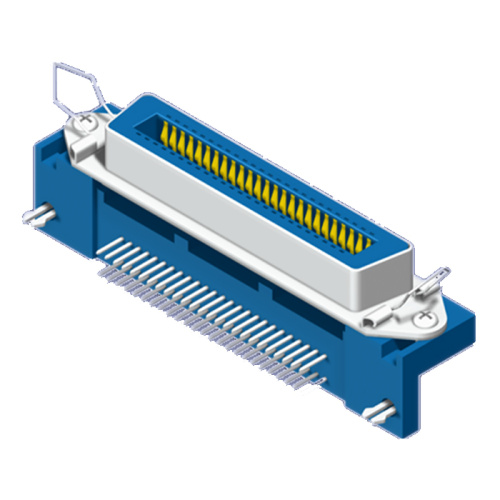

2.16mm Centronic Right Angle Female Connector

Specifications:

Current Rating: 5A
Dielectric Withstanding Voltage:1000V for one minute
Insulation Resistance:1000MΩ Min.(at 500V DC)
Contact Resistance:35mΩ Max.
Temperature:-55°C to +105°C

Material & Finish
1.SHELL:
Steel Zinc Plated,Tin Plated or Nickel Plated Steel
2.PIN CONTACT:Phosphor Bronze or Brass Gold Plated
3.INSULATOR:
PBT & Glass-Fibre Reinforced UL 94-V0

57CR-MXXXX01 2.16mm Centronic Right Angle Male With L Shape Plate
