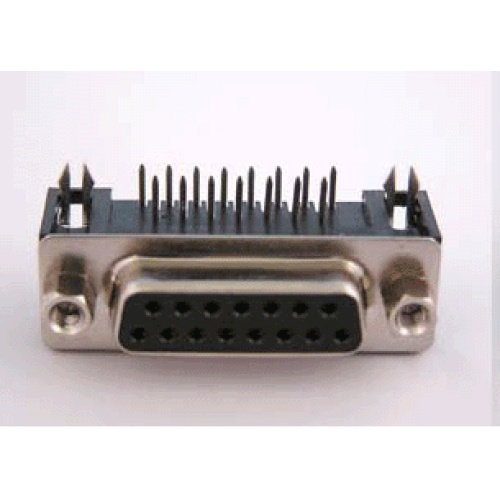

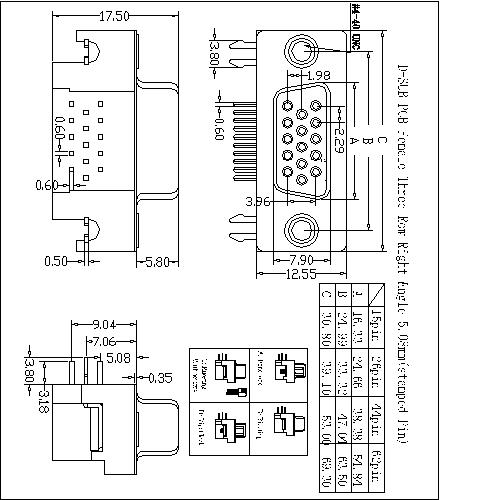

D-SUB PCB Female Three Row Right Angle

1.product introduction

D-SUB

D-Sub connectors can be used for power, analog, RF, or digital signal transmission, and are generally easy to service/replace/install in the field.This connector style can be used in a wide range of applications, from temperature-controlled data centers to harsh combat environments.Mainly used in telecommunications, industrial control, data transmission, aviation, aerospace, military industry and other fields;Usually applied with PCB or CABLE, as I/0 interface, with shielding function;It is usually used in telecommunications equipment, data exchange equipment, routers, switches, servers and other equipment.

The D-Sub connector was once one of the smallest connectors used in computer systems.They are named for their D-shaped metal connector housing.The metal housing surrounds two or more parallel rows of pins or sockets that transmit data in series.There are five different connector housing sizes.Each housing size can have two different pin configurations.The standard housing size has two rows of pins, and the high-density version has three rows of pins.

2.product parameter

Material:

Housing: Temperature Thermoplastics,PBT+G.F UL 94V-0

Contact: Brass or Bronze

Shell: 0.35T Steel Nickel Plating All Area

Electical Characteristics:

Current Rating：  5A

Contact Resistance： 15 milliohms Max

Withstanding Voltage:  500V AC For 1 Minute

Insulation Resistance： 1000　Megohms Min

Operating Temperature::  -55°C  to  +105°C
