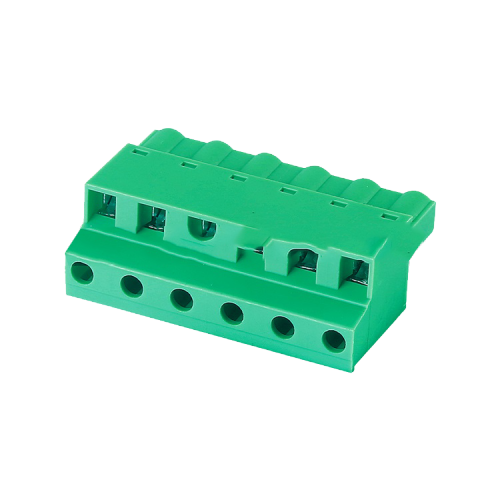

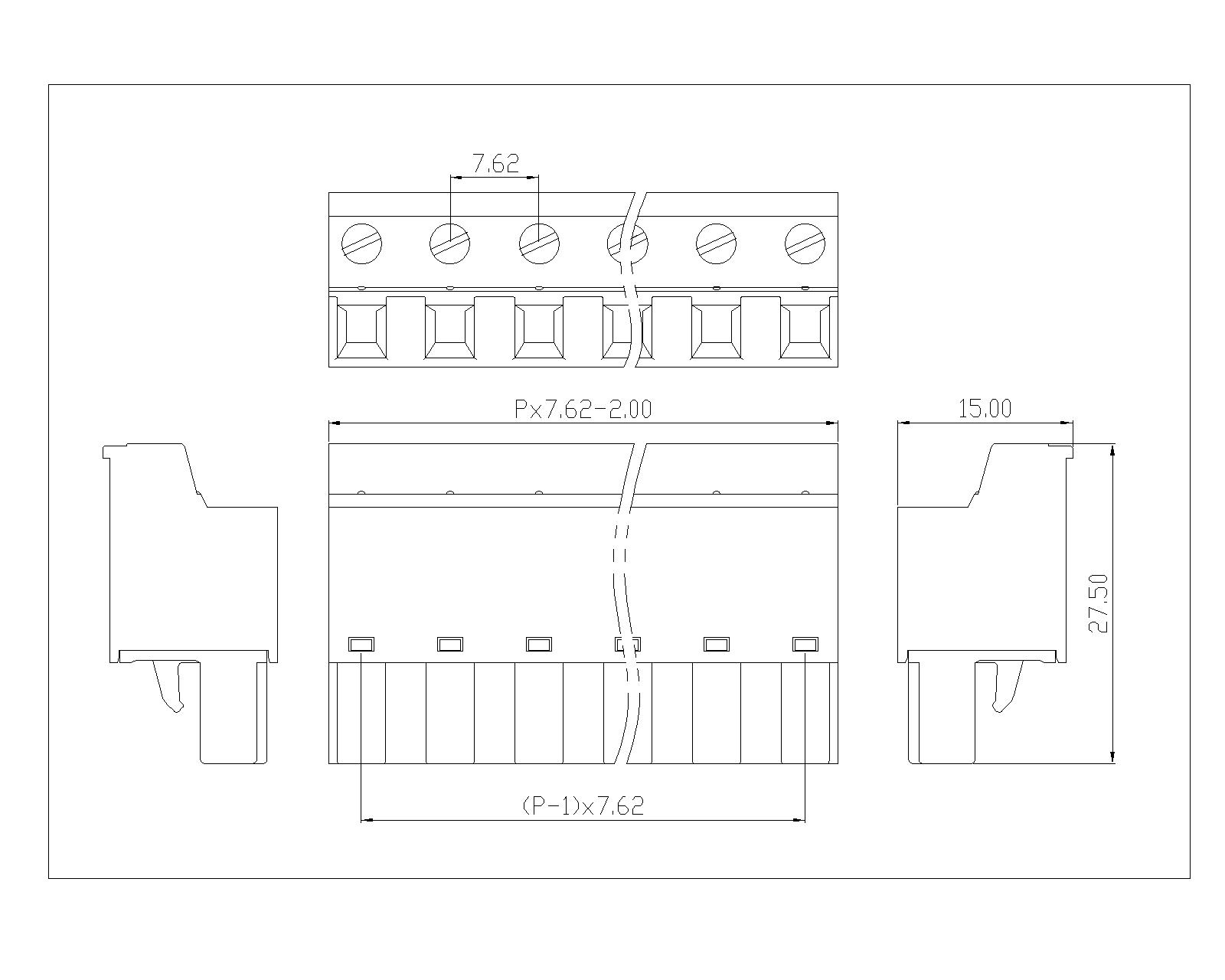

Plug-in Terminal Block Pitch 7.62

Terminal station is an electronic component used for circuit connection, also known as terminal block, electrical connector, etc.According to the shape, the circular electric connector is the most used in military equipment (aviation and aerospace) due to its own structural characteristics.Rectangular electrical connectors are more commonly used for printed circuit boards of electronic devices because of their simple structure.According to the structure: threaded connection, bayonet (fast) connection, card lock connection, push-pull connection, straight insert connection, etc.According to the contact end connection form: crimping, welding, winding;Screw (cap) fixed;According to environmental protection: environmental resistance electrical connector and ordinary electrical connector.The electrical connector consists of a fixed-end electrical connector (hereinafter referred to as a socket) and a free-end electrical connector (hereinafter referred to as a plug).The socket is fixed on the electrical parts through its square (round) disk (individual welding method), the plug is generally connected to the cable, and the plug and socket are connected by connecting the nut.

2.product parameter

额定电压Rated Voltage:300V

额定电流Rated Current:10A

线径Wire Rang:AWG24~12

耐电压Withstanding Voltage:1600V 1Min

额定电压Rated Voltage:400V(过电压III Over voltage category III)/

     630V(过电压II Over voltage category II)

额定电流Rated Current:15A

额定冲击电压Impulse withstand voltage:6.0KV

导线截面面积Conductor cross section:2.5mm2^

绝缘材料Insulation Material:PA66,UL94V-0

导体材料Contact Material:铜合金Copper alloy

电镀Contact Plating:镀镍Nickel plated

极数poles:2~24

剥线长度：9-10mm

工作温度：-40°C~+105°C
