2.54x2.54mm Machined PGA Pin Grid Array Sockets Connector

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

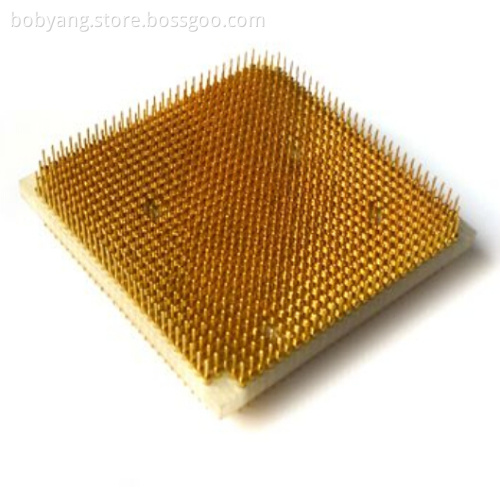

2.54mmx2.54mm Machined PGA Pin grid array sockets

Specifications:
Materal:
Pin(outer sleeve)Brass,machined CuZn38Pb2
Plating(outer sleeve)
Tin Plated:2m/80μ"N,5μm/200μ"Sn
Gold Pated:2μm/80μ"N,full gold
Insulator:FR4 UL94V-0
Cllp(Contact 6 Flnger):Berylliumcopper,heat teated

Electrical:
Current rating:1AmPs/contact max.
Current resistance:≤4mΩ/contact
I nsuiation resistance:≥1000MΩat V=100V
Dleiectric Withstanding Voltage:1000 AV Min
OPeraing vcitage:60VAC/DC

Mechanical:
Average Insertion force with steel pin of ∅0.31:＜60g
Average Insertion force with steel pin of ∅0.31:＞15g
OPeraling TemPerature:-40°C to+105°
Soldering TemPerature:+255°

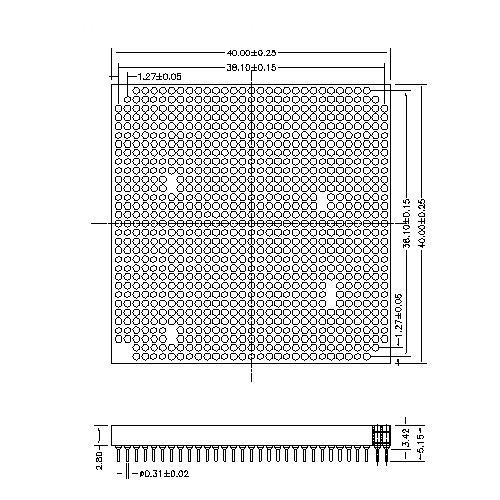

PGA04-XXXXXX PGA Pin grid array sockets 2.54X2.54mm
