5P Angle DIP B Mini USB

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal,L/C
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

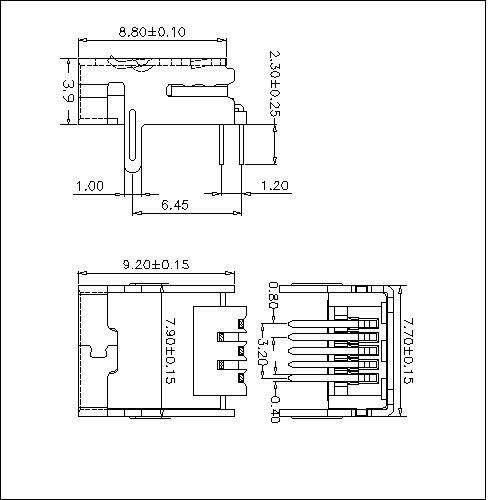

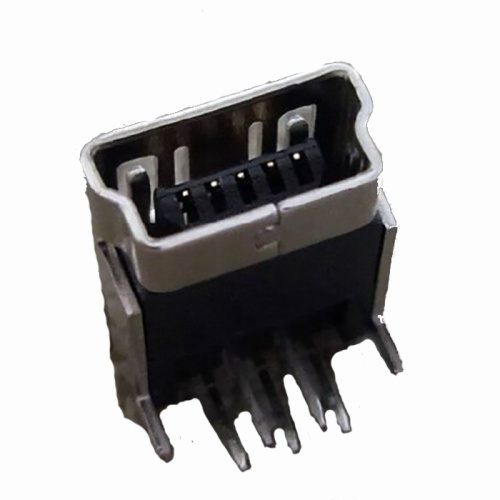

Mini USB 5P Receptacle Angle DIP 2 Legs B Type

Specifications:
Current Rating: 1A Max
Contact Resistance:50 milliohms MAX
Dielectric Withstanding Voltage:100V AC AT Sea Levol
Insulation Resistance: 500 MEGA ohms MIN
Housing: Temperature Thermoplastics,LCP UL 94V-0
Contact: Copper Alloy T=0.25mm Piated Gold in Mating Area; Tin On Solder Talls
Shell: Copper Alloy T=0.40mm Nickel/Plating

NUFR01 1 Mini USB 5P Receptacle Angle DIP 2 Legs
