MICRO USB B Type Receptacle Connector

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

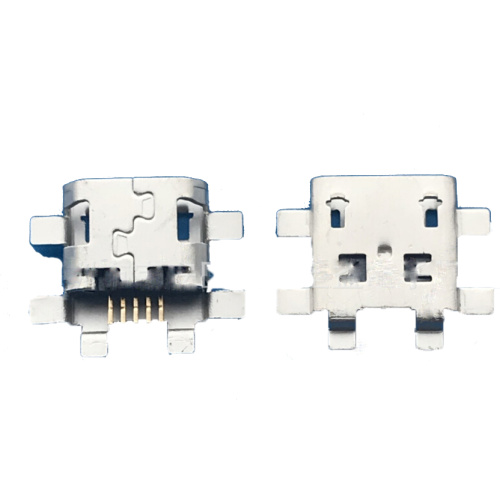

MICRO USB 5P B Type Receptacle Connector Six Shell SMT,Sink1.29mm

SPECIFICATIONS:
1.Material:
1.1 Housing:High temperature thermoplastic
with G.F,UL94V-0
1.2 Contact:Copper alloy,t=0.15mm
1.3 Shell:Strainless Steel,t=0.30mm
2.Electronical Characteristics:
2.1 Current rating:1 A MAX.
2.2 Dielectric withstanding voltage:
100V AC for 1 minute
2.3 Contact resistance:30 MΩ Max Initial
40MΩ Max After 10000 Cycles
2.4 Insulation resistance:100 MW Min.
2.5 Total mating force:3.57 kgf Max.
2.6 Total unmating force:1.0kgf min. 0.81-2.05
kgf min. after 10000 insertion/extration cycles
2.7 Durability:5000 Cycles Min.
2.7 Temperature range:-30°C To +80°C
