Machined Socket connectors 2.54mm MFHES series

Circular hole pin header can be used as heat conduction materials to connect electronic components with radiators or other heat dissipation devices to speed up the conduction and dissipation of heat.In addition, the Circular hole pin header row needle can also be used for the protection of electronic equipment, such as fixed or inserted in the external housing of electronic equipment, to protect and stabilize the equipment.To sum up, the Circular hole pin header stitch is a common connection device, which is widely used in electronic devices and electronic components.It has a variety of uses, including the connection, plugging, positioning, fixing, combination, expansion, heat dissipation and protection of electronic devices

In sewing, it is used to fix fabric, mark the position, trim thread, remove thread, change the size of clothes, make auxiliary tools and other purposes.

2.product parameter

Materal:

Pin(outer sleeve)Brass,machined CuZn38Pb2

Plating(outer sleeve)

Tin Plated:2m/80μ”N,5μm/200μ”Sn

Gold Pated：2μm/80μ”N，0.8μ”gold

Plating(Contact):2μm/80μ"N,goldor TinPlated

I nsuiator：PPS UL94V-0

Cllp(Contact 4 Flnger):Berylliumcopper,heat teated

Electrical：

Current rating：3AmPs/contact max。

Current resistance：≤4mΩ/contact

I nsuiation resistance：≥1000MΩat V=100V

OPeraing vcitage：60VAC/DC

Mechanical：

Average withdrawal force with steel Pin of∅0432":＜270g

Average withdrawal force with steel Pin of∅0.432/0.38":＞90g

Mechanical Ligecycle：min 200

OPeraling TemPerature：-40°C to+105°

Soldering TemPerature：+255°

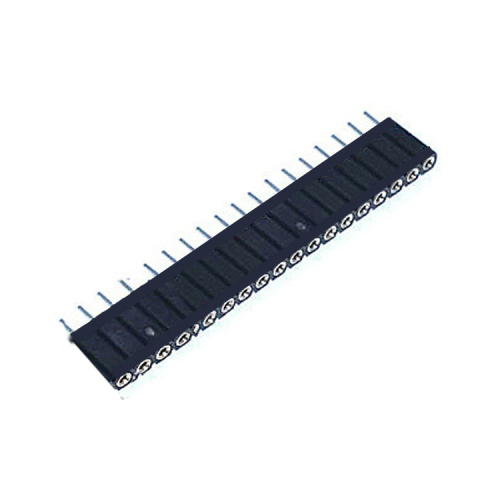

3.product picture
