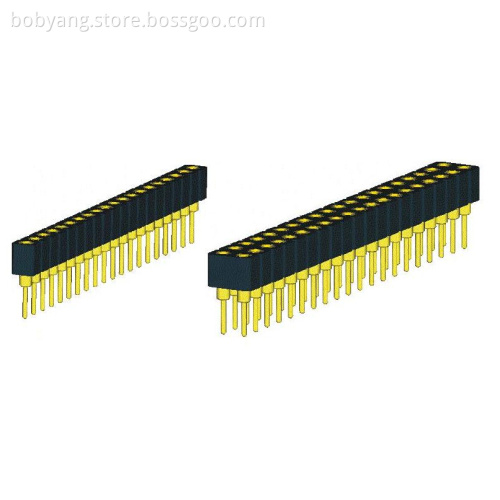

Machined Socket Connectors 2.0 mm Straight

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

Machined Socket connectors 2.0 mm: MFHDS series

Specifications:
Insulator: PPS
Fiammability: UL 94V-0
Sleeve: Brass
Contact clip(3 finger): Beryllium copper
Mating pin ∅: 0.38 to 0.50 mm
Forces: (polished steel gauge ∅0.41mm)
-Insertion 0.5 N typ.
-Withdrawal 0.2 N typ.
Mechanical life: min 500 cycles
Rated cument: 1A
Contact resistance: max 10 mΩ
Dielectric strength: min 500V RMS

MFHDS-XXXXX00 Machined Socket connectors 2.0 mm MFHDS series
