2.54MM Ejector Header SMTtype with Metal Latch

2.54MM Ejector Header SMTtype with Metal Latch
ShenZhen ANTENK Electronics Co.,Ltd was established in 2006 year , our main products are PCB connector , Board to board connector ,Wire to board connector ,wire assembly and X code connecotr ect. we can accept small orders and provide free samples if needed ,we supplys this kind of Ejector header with best price and good quality in China for more than 12years.

Ejector header and IDC flat cable connectors are two of the most commonly used connectors.Using for IDC flat cable connectors).

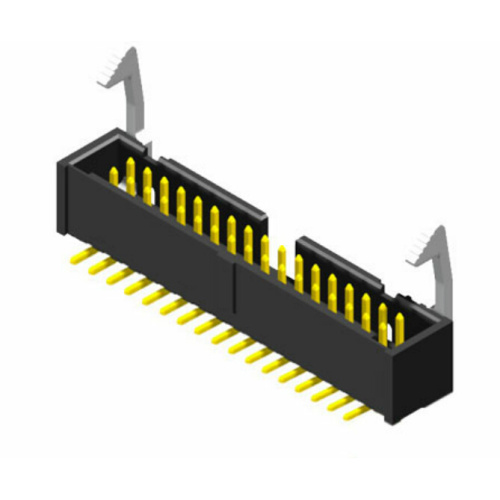

This kind of  ejector header connector,2.54MM Ejector Header SMT type with Metal SHORT and Long Latch  06-64 contacts are available  , it can be have many options ,pls find more details as below .

Current Rating:                       1.0Amp
Insulation Resistance:            1000MΩ  min
Contact Resistance:               20MΩ  max
 Withstand Voltage:                500V AC/DC
Operating Temperature:  -40°C  to  +105°C
Contact Material:                    Brass
Contact Plating:                      Au or Sn Over Ni
Insulator Material:              PA6T+30%GF UL 94V-0
