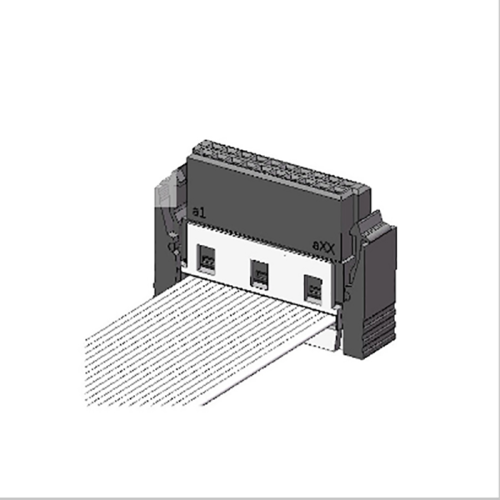

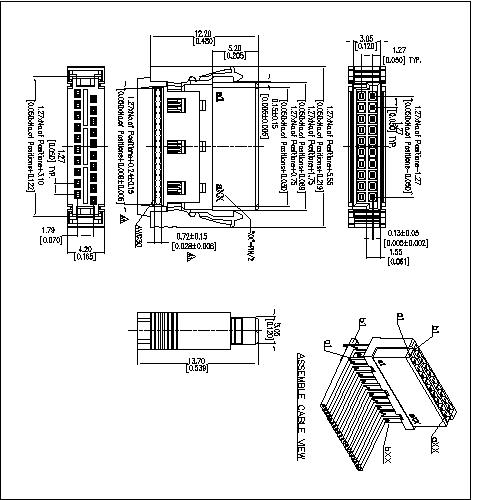

1.27 Pitch SDC IDC TYPE CONNECTORS

Various electrical connectors are key components in countless electronic devices because they both enable and protect the transmission of electrical signals. From the connection of critical computer components to the cables in the cars we drive, they play a wide range of roles and the applications they serve vary. Although some are simple in design, connectors are often implemented in complex electrical systems. Therefore, connectors must be durable and reliable, while being easy to assemble and use. While not all electrical connectors can withstand extreme environments, a large number of connector specifications ensure that the right type of application can be found for a customized device.

                                     Notes
Rated current:0.8AMP.
Contact resistance:25Ω min
Withstand voltage:500V
Insulation resistance:10000MΩ min
Operation temperature:-55℃ to 105℃

Contact material:phosphor bronze
Contact plating:Sn and Au over Ni
Main body material:LCP
Main cover material:LCP
