2.16mm CENTRONIC CONNECTOR RIBBON RECEPTACLE TYPE

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

Shenzhen Antenk Electronics Co., Ltd. launched a

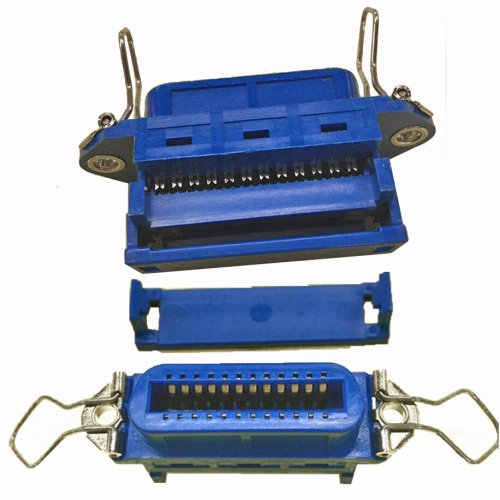

2.16mm CENTRONIC CONNECTOR RIBBON RECEPTACLE TYPE

57CI-FXXXXXX01

SPECIFICATIONS
Current rating :1A : AWG28/1, 2A : AWG26
Insulation resistance :≥1000 MΩ
Dielectric withstanding voatge :
500V, at sea level
Operating temperature :
-25°C～ 85°C (limited by cable)
Contact resistance :≤20mΩ
Insulator material : polyster resin
& glass reinforced, UL 94V-0
Contact material : phosphor bronze
Contact plating : gold over nickel
Wire xize : AWG26 & AWG28 stranded,
1.27mm conductor center flat cable

57CI-FXXXXX01 2.16mm CENTRONIC CONNECTOR RIBBON RECEPTACLE TYPE
