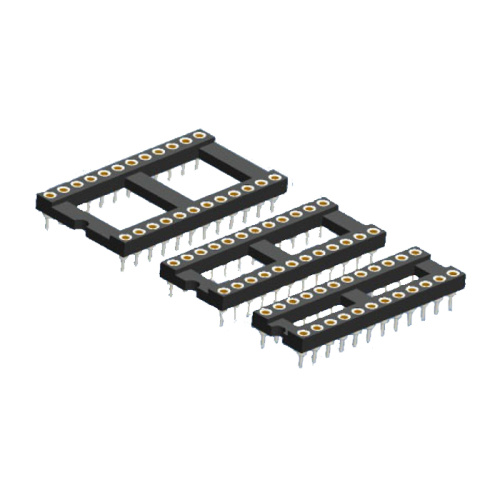

2.54mm Dual-in-line Socket DIP L 7.43MM

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN

Product Description

2.54mm Dual-in-line Socket DIP L 7.43MM

Specifications:
Current Rating: 1.0Amp
Contact Resistance: 10mΩ max
Dielectric Strength: Min 1000 V RMS
Mechanical Life: Min 100 Cycles
Mating Pin: ∅0.40 to ∅0.56mm
Operating Temperature: -40°C to +105°C
Sleeve: Brass CuZn36Pb3(C36000)
Contact Clip(4 finger): BeCu(C17200)
Contact Plating: Au or Sn Over Ni
Insulator Material: PPS+30%GF UL 94V-0
06p~16P Insulators without center bar
36p~52P Insulators with center two bar
64P Insulators with center three bar
MIFES08-XXXXX 2.54mm Dual-in-line Socket Straight DIP(H=3 L=7.43)Series
