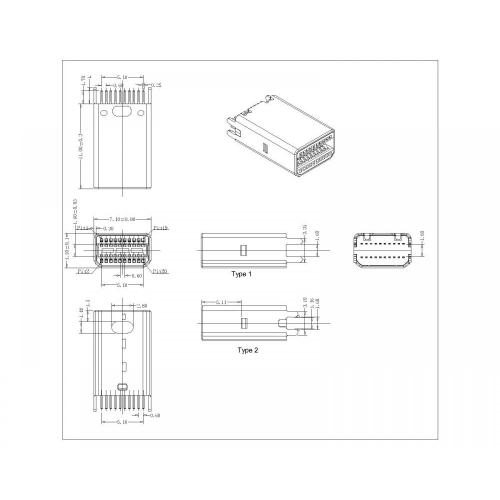

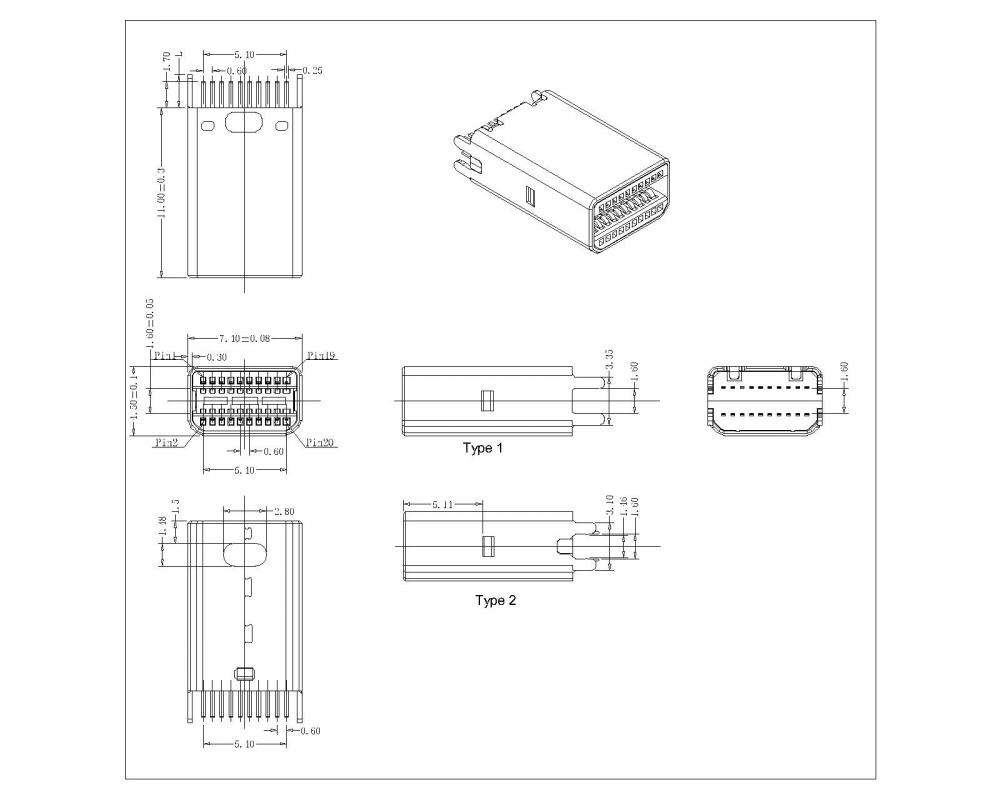

Mini Display Port Plug (straddle 1.6mm type)

Mini Display Port Plug (straddle 1.6mm type)

Specifications
1.materials:
  1.1 Terminal:C5191,Selective Gold Plating and Matte Tin Plating;
  1.2 Housing:Moding LCP Black,Body LCP Nature;
  1.3 Shell:C2680 Gold Plating,Salt Spray 24H;
2.Electrics:
  2.1 Rated Voltage:40VAC MAX;
  2.2 Rated Current:0.5A
  2.3 Contact Resistance:30mΩ Max.
  2.4 Insulation Resistance:100MΩ Min.
  2.5 Withstand Voltage:300VAC;
3.Machanical:
  3.1 Insertion Force:4.5Kgf Max.
  3.2 Withdrawal Force:1.0~4.0Kgf.
  3.3 Durability:10,000 Cycles
4.Enviromental:
  4.1 Temperature Range:-40℃~+85℃
5.Packing:Tray
