Mini Display Port Plug(With 3 sticking point)

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air

Port:: shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	100000/month
Supply Ability:	100000/month
Payment Type:	L/C,Paypal,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	iso9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	shenzhen

Product Description

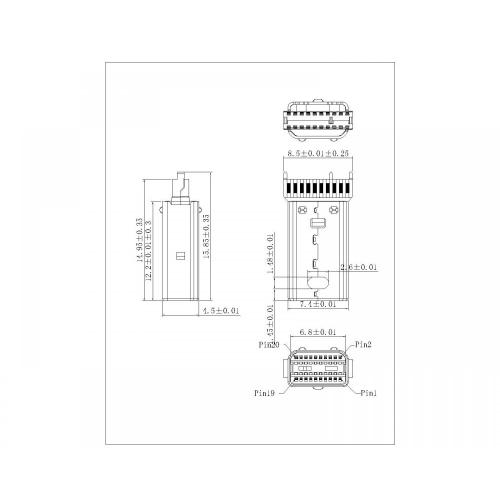

Mini Display Port Plug(With 3 sticking point)

NOTES:
1.Material
Body: LCP
Molding: LCP ,Black
Contact: Copper Alloy;
Shell: SPCC;
2.Plating:
Contact:Gold plating over on contact area,Tin(50U''MIN) Plating on Solder Tail.
Shell: Nickle Plating.
3.Electrical Specification
Current Rating: 1.5 A
Contact Resistance: 30 mΩ max.
Insulation Resistance: 100MΩ Min
Withstanding Voltage: 500V AC for 1 minute
