Mini Display Port Receptacle (straddle 1.2mm type)

NOTES:
*Material
Body and sheath: LCP UL94V-0
Insert(Molding): LCPF UL94V-0
Color:Black
Contact: C5191;
Plating: Gold plating over Nickel(40~80U'') on contact area,Tin(100~250U'') Plating on Solder Tail.
Shell: Brass;
Plating: Nickle(30~80U") Plating.
*Electrical Specification
Current Rating: 0.5 Ampere per contact
Contact Resistance: 30 mΩ max.
Insulation Resistance: 100MΩ Min
Dielectric Withstanding Voltage: 300V AC Min
*Environmental
Operating Temperature: -40℃ to +85℃.

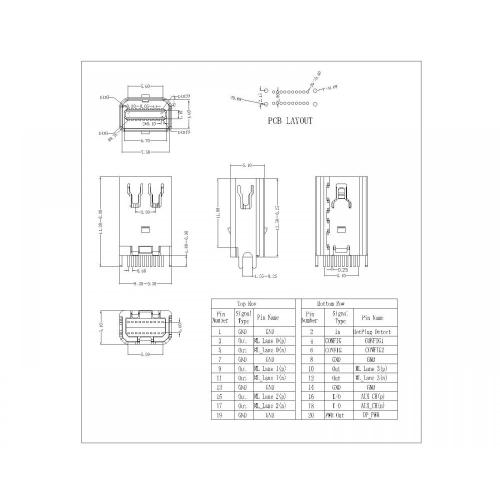

Mdp F X X 05 Mini Display Port Receptacle 180 Dip Straight Legs Jpg
