Mini Display Port receptacle (straddle 1.6mm bent legs)

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air

Port:: shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	100000/month
Supply Ability:	100000/month
Payment Type:	L/C,Paypal,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	iso9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	shenzhen

Product Description

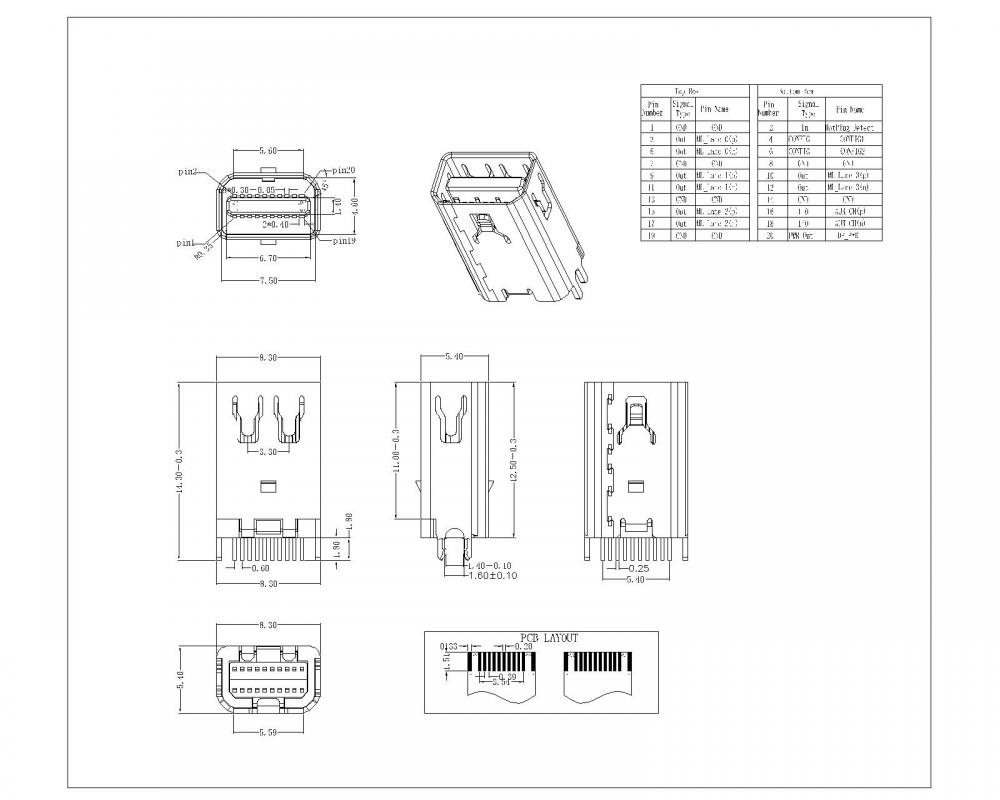

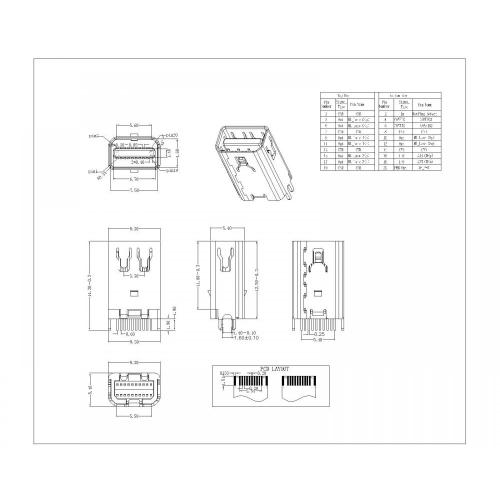

Mini Display Port receptacle (straddle 1.6mm bent legs)

NOTES:
*Material
Body and sheath: LCP UL94V-0 Color:Black
Insert (Molding):LCP UL94V-0 Color:B]ack
Contact: C7025;
Plating: Gold plating over Nickel on contact area,
Tin Plating on Solder Tail.
Shell: Brass/spcc;
Plating: Nickel Plating.
*Mechanical
Insertion Force: 4.5Kg Max
Withdrawal Force: 1.0~4.0Kg Min
Durability: 10000 Cycles
*Electrical Specification
Current Rating: 0.5 Ampere per contact
Contact Resistance: 30mΩ max.
Insulation Resistance: 100MΩ Min
Dielectric Withstanding Voltage: 500V AC Min
*Environmental
Operating Temperature: -40℃ to +85℃.
