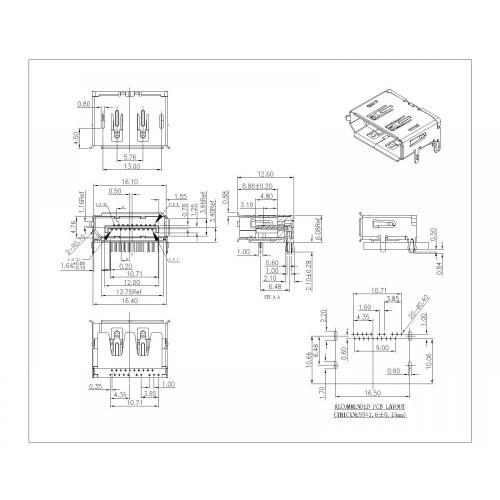

Display Port Female DIP With Fork Legs,Without Boss

Display Port Female DIP With Fork Legs，Without Boss

NOTE:
A. MATERIAL:
 1. Housing: LCP(HF) UL94V-0 Black
 2. Cover: LCP(HF) UL94V-0 Black
 3. Contact: Copper Alloy T=0.20
 4. Shell: Copper Alloy T=0.30
B. PLATING:
 1. Contact: Contact Area Gold Plated
           Solder Area Sn Plated
           Under Plated Nickel
 2. Shell: Nickel Plated
C. SPECIFICATION:
 1. Current: 0.5A
 2. Voltage: 40V RMS
 3. Withstanding Voltage: 500V AC
 4. Contact Resistance: 30 mΩ max. (Contact)
                    50 mΩ max. (Shell)
 5. Insulation Resistance: 100 MΩ min.
 6. Temperature Range: -20°C to +85°C
 7. Mating And Unmating Force:
    7.1 Mating  Force: 4.5Kgf(44.1N)Max.
    7.2 Unmating Force: 1.0Kgf~4.0Kgf(9.8N~39.2N)
