DIN 41612 M TYPE Male 48P 180 DIP

DIN41612 connector is a European standard and widely used connector, usually used in the chassis, connecting the signal and power lines between modules or cards on the circuit board.It features a variety of wire termination methods, including rising cage clamps, wire protectors, springs, IDC and crimp clasp.The connection forms are parallel connection and vertical connection.

The main features are as follows:

1. High protection level: European socket connectors usually use high protection level design, such as IP44, IP54, IP67, etc., to ensure that the electrical equipment inside the socket is protected from dust, water mist and other external environment, thereby improving the reliability and stability of electrical equipment.

2. High safety: European socket connector has good safety performance, reliable mechanical connection between the plug and the socket, after the plug is inserted into the socket, it is necessary to turn the plug to complete the electrical connection, avoiding the plug is not strong and misinserted.In addition, the European socket connector also has anti-arc, anti-electric shock and other safety functions.

3. Wide range of applications: European socket connectors have a variety of different types and specifications, can be applied to a variety of different electrical equipment and machines, such as power tools, electric vehicles, ships, lighting equipment, audio equipment, medical equipment and so on.

High-current connectors use special electrical contacts to ensure low resistance and the contact pressure needed to ensure stable electrification.Electrical contact is achieved by using a reed as an electrical contact between the socket and the plug to achieve stable power.The electrical contact is the key component that determines the performance of the connector

2.product parameter

Current Rating: Signal contact 2.0Amp max

             Power contact 40Amp max

Insulation Resistance: 1000MΩ min.at DC 500V

Contact Resistance: 20mΩ max

Withstand Voltage: AC 1000V For 1 Minute

Operating Temperature: -40°C to +105°C

Contact Material: Copper alloy

Contact Plating: Au or Sn Over Ni

Insulator Material: Thermoplastic resin,

               glass-fibre filled UL 94V-0

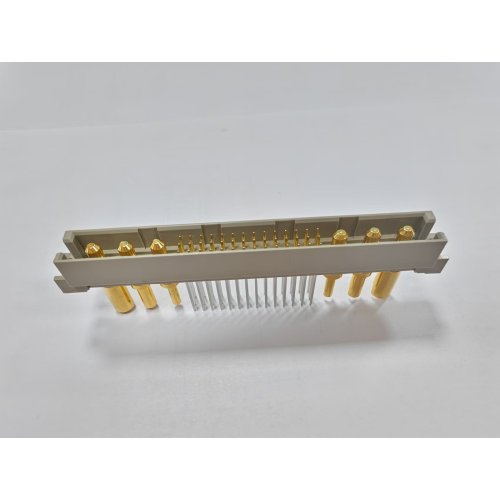

3.product picture
