DIN41612 Vertical Female Type IDC Connector 96 Position

1.product introduction

DIN41612 connector is a European standard and widely used connector, usually used in the chassis, connecting the signal and power lines between modules or cards on the circuit board.It features a variety of wire termination methods, including rising cage clamps, wire protectors, springs, IDC and crimp clasp.The connection forms are parallel connection and vertical connection.

The main features are as follows:

1. High protection level: European socket connectors usually use high protection level design, such as IP44, IP54, IP67, etc., to ensure that the electrical equipment inside the socket is protected from dust, water mist and other external environment, thereby improving the reliability and stability of electrical equipment.

2. High safety: European socket connector has good safety performance, reliable mechanical connection between the plug and the socket, after the plug is inserted into the socket, it is necessary to turn the plug to complete the electrical connection, avoiding the plug is not strong and misinserted.In addition, the European socket connector also has anti-arc, anti-electric shock and other safety functions.

3. Wide range of applications: European socket connectors have a variety of different types and specifications, can be applied to a variety of different electrical equipment and machines, such as power tools, electric vehicles, ships, lighting equipment, audio equipment, medical equipment and so on.

2.product parameter

Current Rating: 0.5Amp

Insulation Resistance: 106MΩ min.at 20℃

Contact Resistance: 20mΩ max

Withstand Voltage: AC 1500V For 1 Minute

Operating Temperature: -20°C to +105°C

Contact Material: Brass

Contact Plating:  Au or Sn Over Ni

Insulator Material: PBT+30%GF UL 94V-0

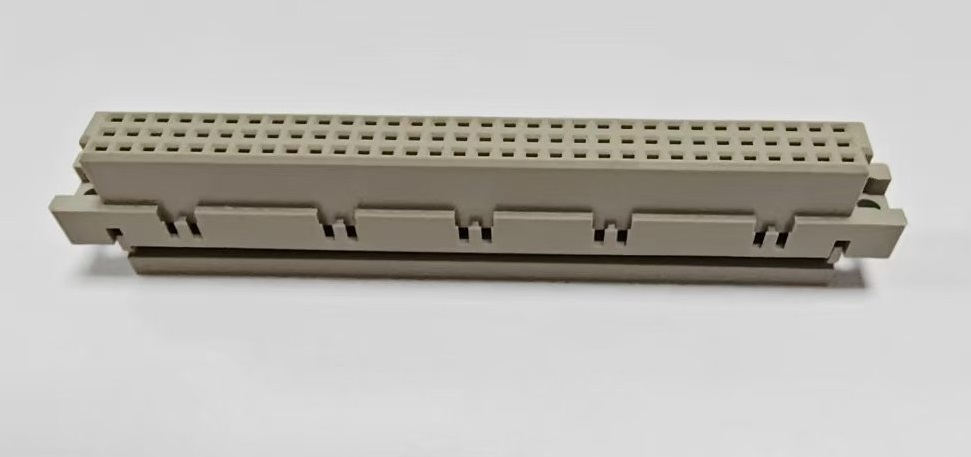

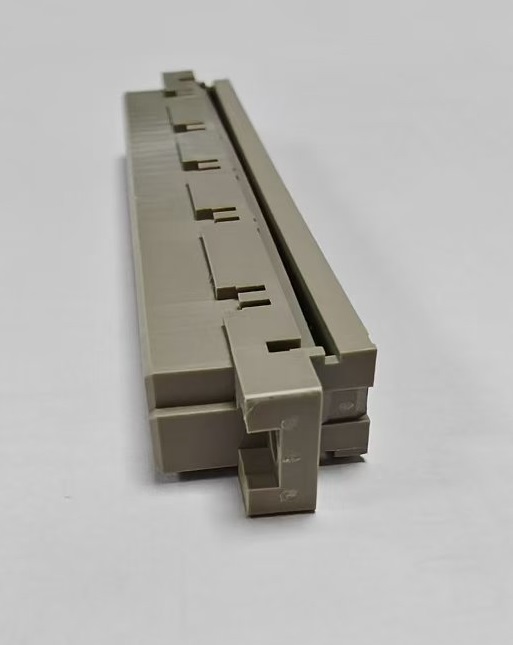

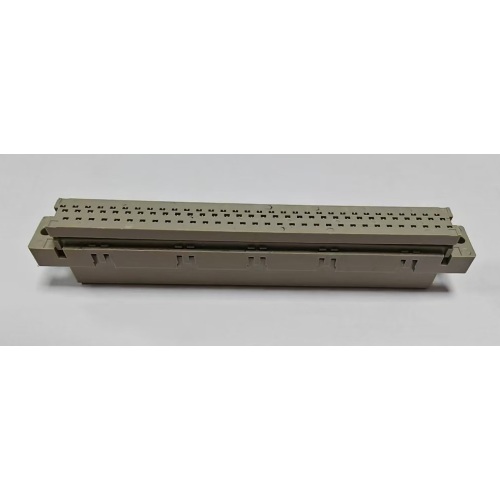

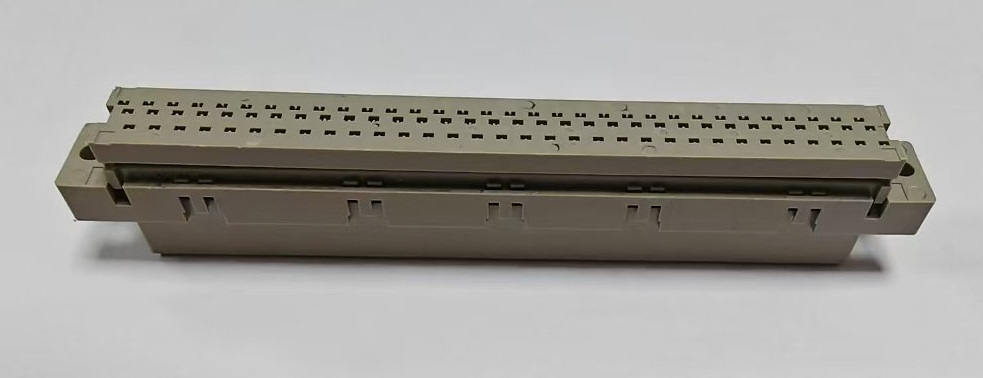

3.product picture
