48P High Power DIN41612 Connectors

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen,

Product Description

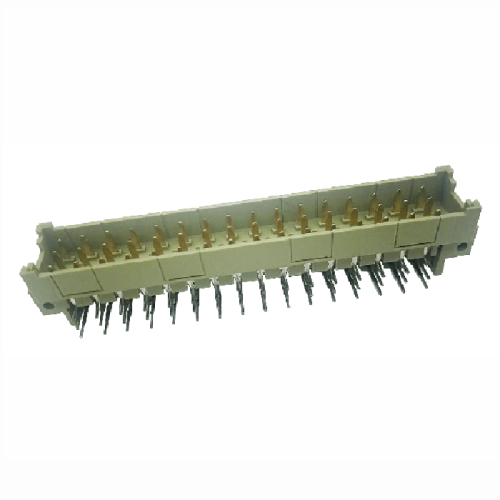

DIN41612 Right Plug F Type High Power Connectors 48 Positions

Specifications:
Current Rating: 5.6Amp
Insulation Resistance: 1000MΩ min. at DC 500V
Contact Resistance:20mΩ max
Withstand Voltage: AC 1000V For 1 Minute
Operating Temperature: -55°C to +105°C
Contact Material: Phosphor Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: PBT+30%GF UL 94V-0
Insertion Force: 75N max.
Withdrawal Force: 0.15N min.per individual contact

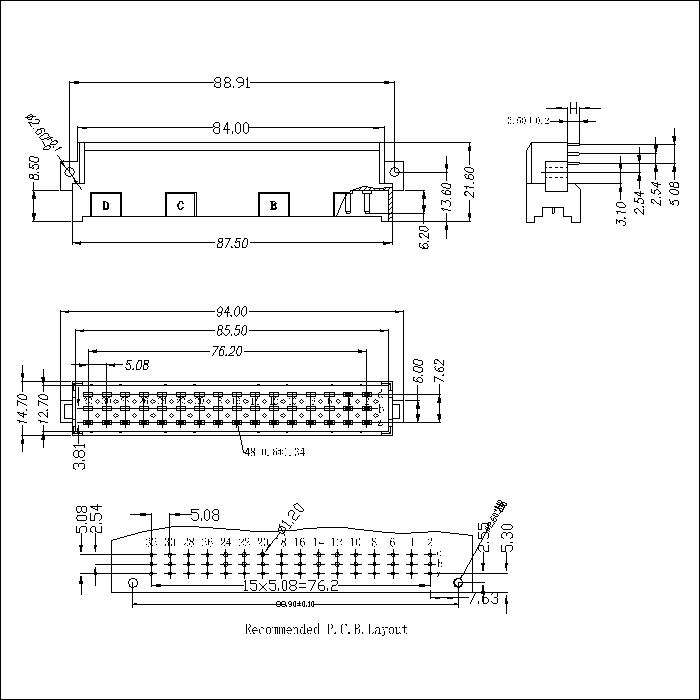

DMR-XX-XXX-D01 DIN41612 Right Plug F Type High Power Connectors 48 Positions Standard Terminal Width 1.34mm
