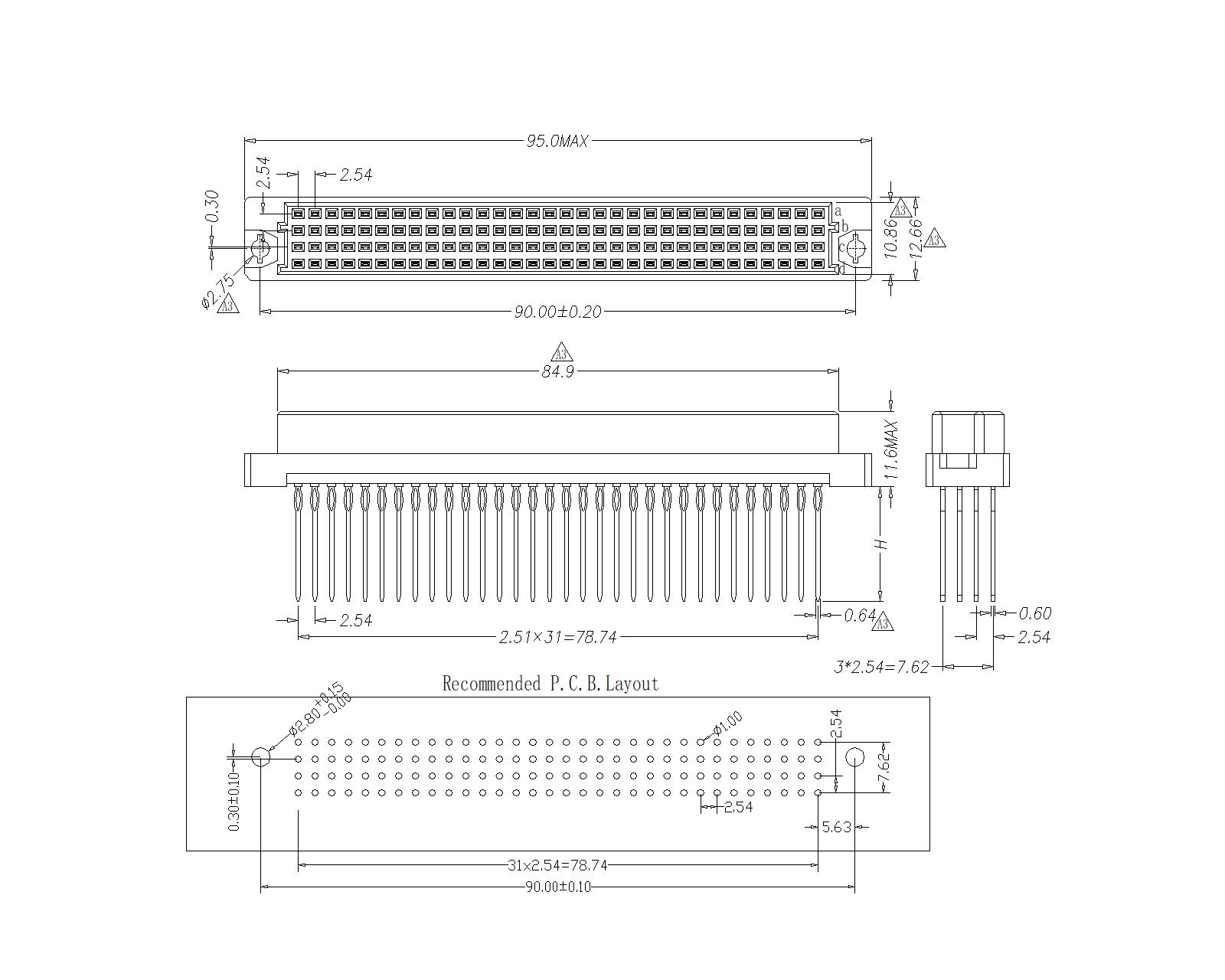

DIN41612 Vertical press fit type c female 128P

Get Latest Price

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

Shenzhen Antenk Electronics Co., Ltd. introduced a DIN 41612 Vertical Female Type B Connectors 48 Positions electronic product .

This connector line includes modules with a high contact density for low voltages; and modules with a low contact density for high voltages. The standard and inverted connectors for printed circuits correspond to national and international standards.

SPECIFICATION

Current Rating: 2.0Amp

Insulation Resistance: 1000MΩ min.at DC 100V

Contact Resistance: 20mΩ max

Withstand Voltage: AC 1000V For 1 Minute

Operating Temperature: -55°Cto +105°C

Contact Material: Phosphor Bronze

Contact Plating: Au or Sn Over Ni

Insulator Material: PBT+30%GF UL 94V-0

Insertion Force: 128 pin max.120N

Withdrawal Force: 0.15N min.per individual contact
