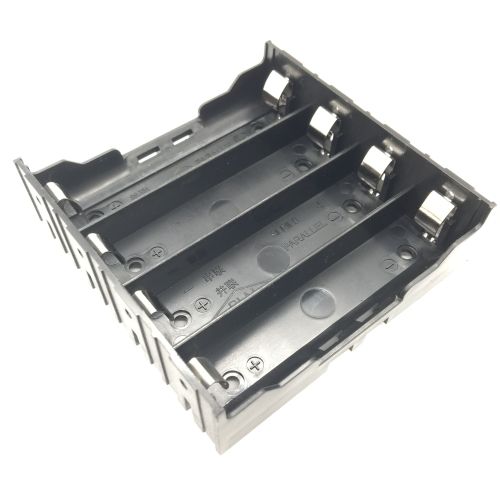

4 Pieces Battery Holder For 18650 THM

1.product introduction

 Battery holder : A plastic box for batteries

Function of the battery box: easy storage, the battery box on the device as a battery installation function, to provide equipment power supply

Application: Used in circuit board electric toys digital photo frame electronic calendar and other digital products

The battery box structure system is mainly composed of the battery PACK cover, tray, various metal brackets, end plates and bolts, which can be regarded as the "skeleton" of the battery PACK, which plays the role of support, resistance to mechanical shock, mechanical vibration and environmental protection (waterproof and dustproof).

Among them, the lower box of the battery box (that is, the battery tray) bears the quality of the entire battery pack and its own quality, and resists the external impact, protects the battery module and the battery cell, and is an important safety structural part of electric vehicles.Below is a diagram of the Audi e-tron battery case, which uses a grid (or egg-shaped carton) structure to secure and protect the battery module within the frame and lower cover (which provides both protection and case integrity).

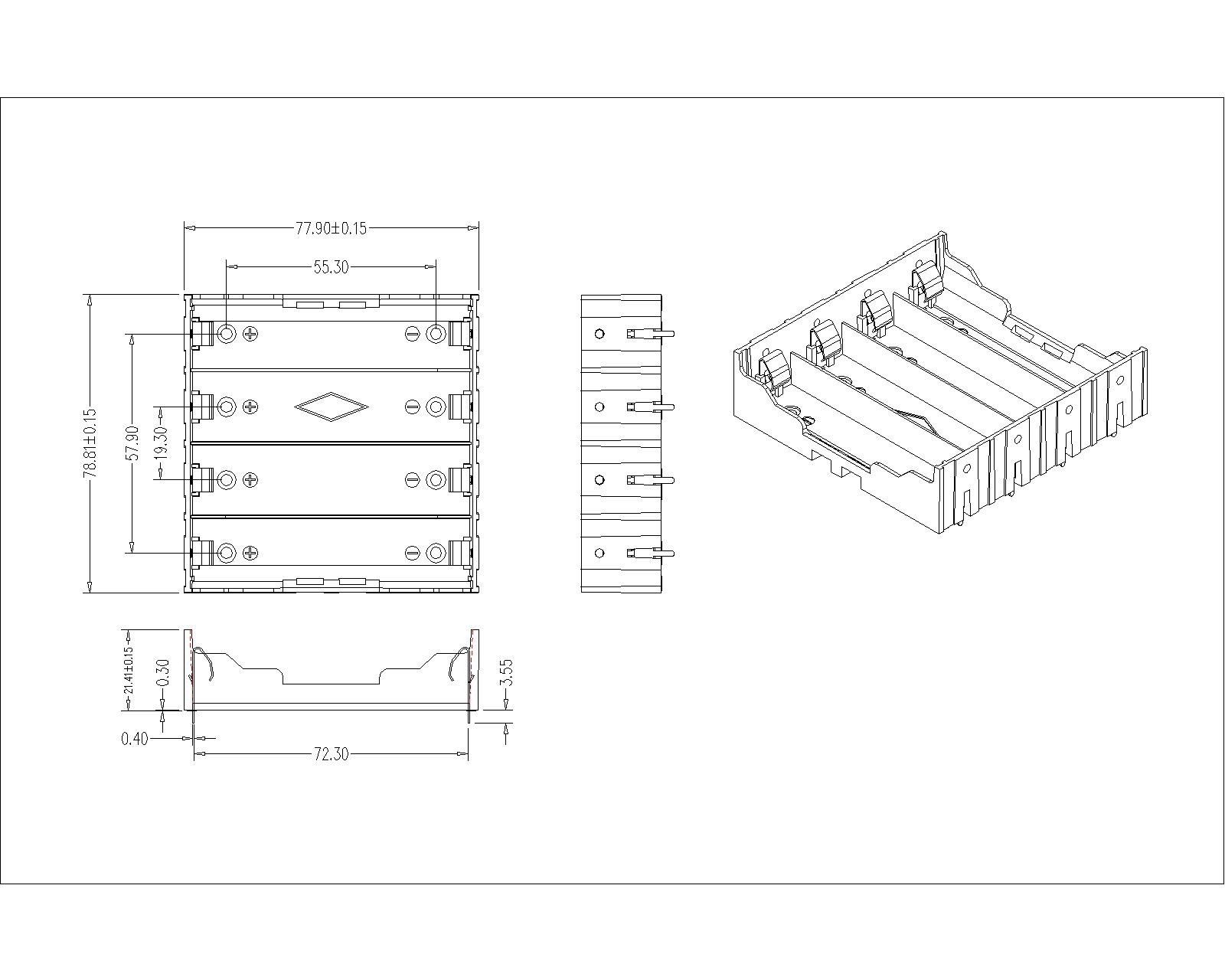

2.product parameter

NOTE:

Type: PC Pins

Base Material: ABS Resin, Black Color

Flammability Rating:UL94HB or Custom Made

PC Pins: 304 Stainless Steel Spring Temper,Nickel Plated

Dielectric Strength: 560 Volts/Mil. at 25° for 5 Sec.

RoHS COMPLIANT
