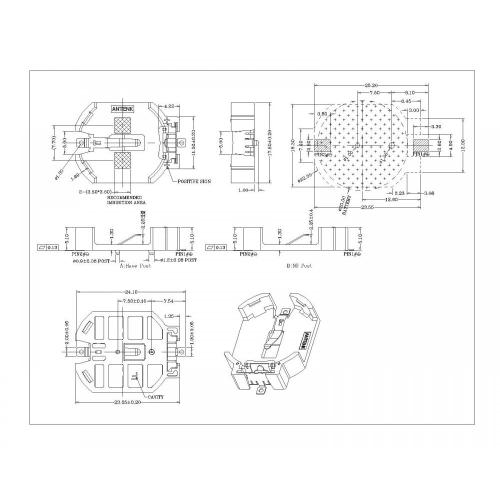

BT-M-G0-A-063 Coin Cell Holders FOR CR2032 SMT

1、Introduction

Battery box structure

Plastic core

Material: PBT, PA66, PPS, LCP, etc.

terminal

Positive (anode): generally shrapnel or corns with crimp terminals

Negative (cathode): shrapnel, spring

Accessories: copper sleeves (corns), UL electronic wires, screws, etc.

Terminal material: brass/phosphor bronze, spring steel, etc.

Terminal plating: spring and crimp terminals are generally nickel-plated, and springs are generally gold-plated

Types of battery holders include:

· Plastic - Plastic holders are fabricated from molded plastic.

· Metal - Metal holders similar in form to molded plastic holders, but with flexible metal clips into which the batteries are inserted.

· Battery snaps - Battery snaps are snap terminals, typically for 9V batteries.

· Coin cell - Coin cell battery holders are for round coin cell batteries.

· Component clips - Component chips are flexible clips into which batteries are inserted and held under constant spring tension.

· Battery racks - Battery racks range in size from those that contain a single battery to those that contain multiple batteries. They are usually available in one, two or multiple tiers.

· Battery cabinets - Battery cabinets are basic battery enclosures.

· Single cell - Single cell battery holders hold only one battery.

· Multiple cell - Multiple cell holders hold 2 or more batteries.

Common connection types for the connection of battery holders to the device include:

NOTE:
1.BASE:LCP+40%GF(UL94V-0) BLACK
2.CONTACTS:PHOSPHOR BRONZE(C5191),T=0.20MM
3.ELECTRIC:
   a.CONTACT RESISTANCE:30 MILLIOHMS MAX
   b.INSULATION RESISTANCE:1000 MEGA OHMS MIN
   c.DIELECTNIC VOLTAGE:500V AC ONE SEC LEVEL
   d.OPERATING TEMPERATURE:-25°C TO +85°C

4.Packing and Traffic

5.our advantage

6.our culture
