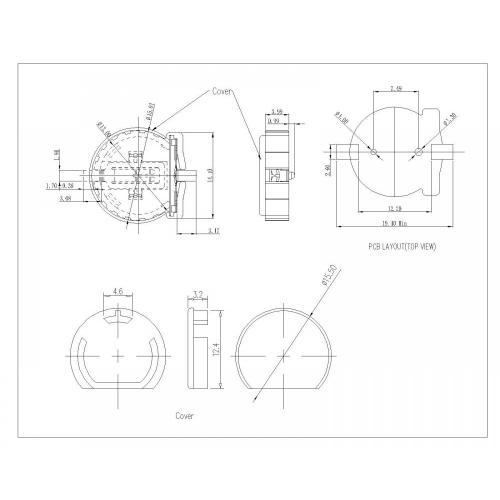

BT-M-GO-R-CR1220E Coin Cell Holders With Cover For CR1220E

1、Introduction

The battery holder offers a wide variety of configuration options. The aforementioned is a surface mount battery holder for horizontal mounting.

Series coin cell battery holders are suitable for compact handheld medical products and other applications where reliability, durability and ease of use are critical.

The battery holder is highly compatible with various types of sterilization cycles commonly found in medical applications. Here, its split snap feature is particularly useful, as the battery may have to be removed prior to sterilization, as the temperature of the sterilization cycle may exceed the battery's maximum rated thermal exposure limit.

 Note:
1.Material:
  a.Housing:PPS Colr:Nature,UL94V-0
  b.Contact:C5191
  c.Surface Plating:Au
2.Electric:
  a.Contact Resistance:30 Mlliohms Max.
  b.Insulation Resistance:1000 Mega Ohms Min.
  c.Dielectnic Voltage:500 V AC One Sec Level
  d.Operating Temperature:-30°To +70°
