2.54mm Box Header 90° Narrow Type

1.product introduction

Shenzhen Antenk Electronics Co., Ltd. launched a 2.54mm Box Header 180° H=9.0 electronic product

The simple cow is usually composed of a square plastic socket and a number of square needles arranged neatly. The difference between the simple cow connector and the horn connector is that the simple horn removes the buckles on both sides.

According to the requirements, the outer dimensions of the simple cattle connector are commonly used in 1.27 pitch, 2.0 pitch, and 2.54 pitch; according to the spacing, the diameter of the square pin used is also changed accordingly. The bottom and PCB contact surface can be designed as SMT patch or DIP in-line 180 degrees.

2.product parameter

Material:PBT,UL94V-0

Insulation Resistance:≥1000MΩ

Temperature Range:-40°C +105°C

Retention Force≥0.8Kgf/Pin

Welding resistance:215°C士5C/ 10s

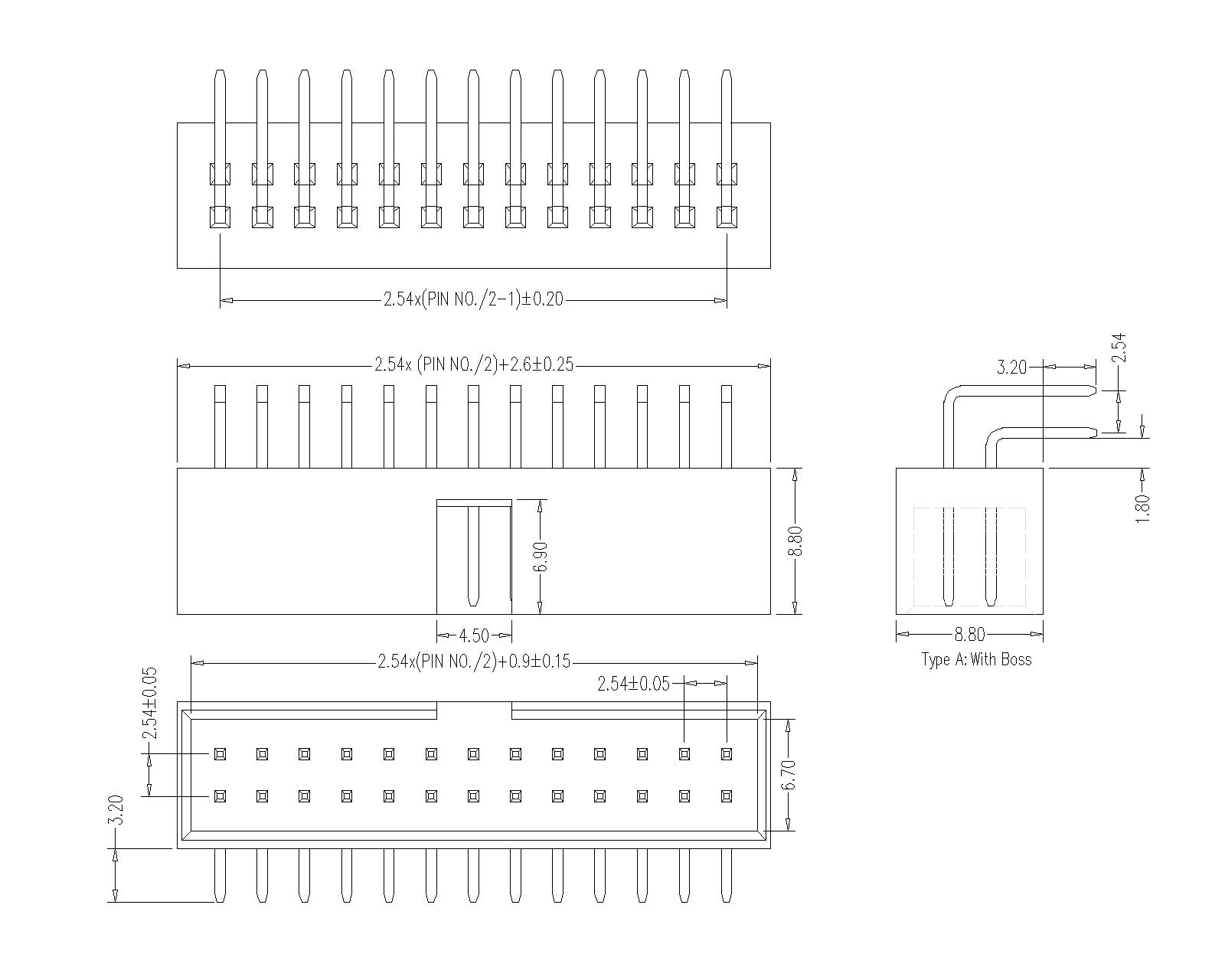

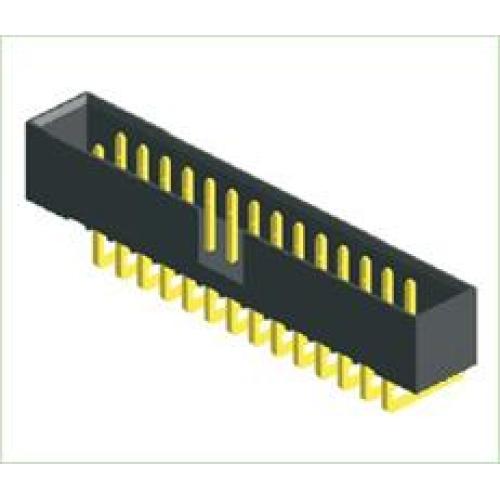

3.product picture
