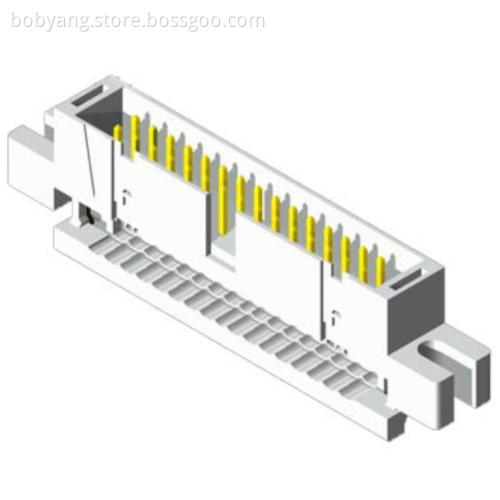

2.54mm Box Header IDC Type With Mounting Ears

The output power of the printed circuit board in the system and electronics to receive/transmit signals needs to be connected to the outside of the substrate. In many cases, there is a certain distance between the printed circuit board and the substrate, and wires are required to be connected. Long distance connections can be achieved by soldering the wires to the substrate. However, for functional considerations, multiple pin-to-board connectors are typically used to connect.

   SPECIFICATION
Current Rating:                       3.0Amp
Insulation Resistance:            1000MΩ  min
Contact Resistance:               20MΩ  max
 Withstand Voltage:                500V AC/DC
Operating Temperature:         -40°C  to  +105°C
Contact Material:                    Brass
Contact Plating:                      Au or Sn Over Ni
Insulator Material:                   PBT UL 94V-0
