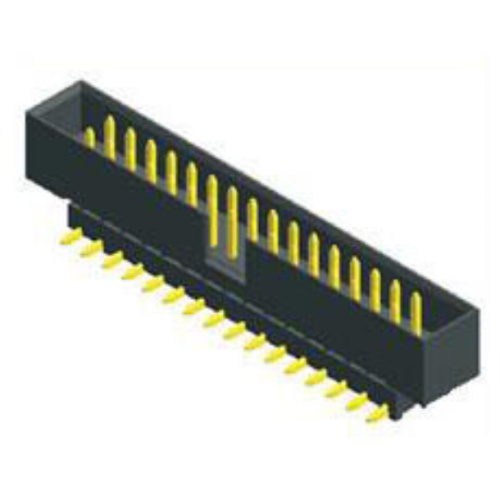

1.27*2.54mm Box Header SMT H=5.90 Connector

$500.00

≥1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Transportation:: Ocean, Air

Port:: SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	SHENZHEN,SHENZHEN

Product Description

China Guangdong Shenzhen Antenk Electronics Co., Ltd. promoted a 1.27*2.54mm Box Header SMT H=5.90 connector.
About the Box Header connector

Shenzhen Antenk Electronics Co., Ltd. uses international 59-1 (special grade A) high quality brass, also known as musical grade brass. The copper content is high, the hardness is high, the impurities are small, the deformation is not easy, the current signal transmission is smoother, and the signal loss rate is lower.

SPECIFICATION
Current Rating: 1.0Amp
Insulation Resistance: 1000MΩ min
Contact Resistance: 20MΩ max
Withstand Voltage: 500V AC/DC
Operating Temperature: -40°C to +105°C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: PA6T+30%GF UL 94V-0

BHBM01 1.27x2.54mm Box Header SMT H=5.85
