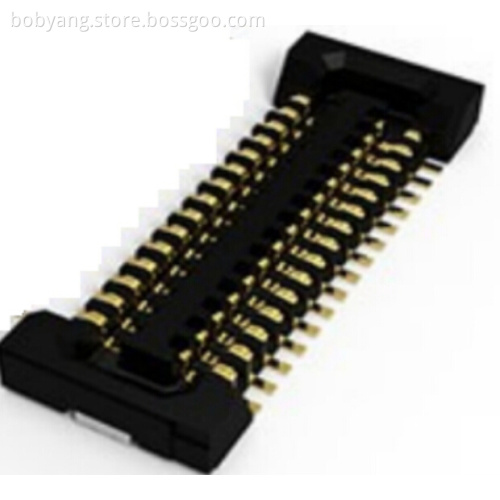

0.4mm Board to Board male connector

Shenzhen Antenk Electronics Co.,Ltd. launched a 0.4mm Board to Board connector,male, mating Height=0.80mm electronic products

The board-to-board connector is a connector product with strong transmission capability among all connector product types. It is mainly used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances and other industries.
At present, the main spacing of the board-to-board connectors is 0.4mm, 0.5mm, 0.8mm, and 1.00m.
The board-to-board connector is small in size and strong in bonding force, and has excellent design in any direction of insertion and removal in four directions. The double contact ensures stable
specifications
1.Materlal:
  1-1.Molded portion:LCP resin(ul94-0).
  1-2.Contact and post:copper alloy.
2.Surface treatment:
  2-1.Terminal portion;base;Ni plating surface;
   Au plating(except the terminal tips);exposed nickel portions.
  2-2.Metal clips:base;Ni plating surface;Au flash plating
                  (except the terminal tips)or base;Ni plating surface;
                  Sn flash plating (except the terminal tips)
3.Characteristics:
  3-1.Rated voltage:60V AC/DC
  3-2.Rated curren:0.3A/contact(Max.5A at total contact)
  3.3.Insulation resistance:Min.1000MΩ(initial)
  3.4.Breakdown voltage:150V AC fou 1 min.
  3-5.Saltwater spray resistance(header and socket mated:24 hours,
     insulact resistance max.90mΩ.
  3-6Contact resistance:Max.90mΩ.
  3-7.Ambient temperature:-55℃~+85℃.
  3-8.Storage temperature:-55℃~+88℃(product only);
                          -40℃~+50℃(emboss packing).
  3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).
  3-10.Composite removal force:Min.0.165N/contacts X contacts.
  3-11.Post holding force:Min.0.49N/contacts.
  3-12.Insertion and removal life:50times.
