0.4mm Board to Board connector Female mating Height=1.00mm

Shenzhen Antenk Electronics Co., Ltd. launched a 0.4mm Board to Board connector,Female, mating Height=1.00mm electronic products

Provides highly reliable data transmission and power transmission. They have a pitch of 0.40mm and a maximum mating height of 1.5mm. Full 360° shielding for closer proximity to the antenna, heat-resistant UL94 V-0 LCP housing, enhanced protection, 42 or 56 gold-plated copper alloy signal pins, single high data rate Performance contact points, four 2.2A gold-plated copper alloy power pins for power supply, and metal shield springs for reliable EMI shielding, multiple ground connections and increased connector retention

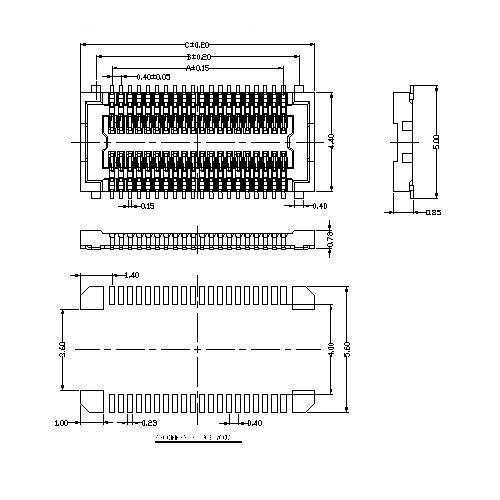

specifications
1.Materlal:
  1-1.Molded portion:LCP resin(ul94-0).
  1-2.Contact and post:copper alloy.
2.Surface treatment:
  2-1.Terminal portion;base;Ni plating surface;
   Au plating(except the terminal tips);exposed nickel portions.
  2-2.Metal clips:base;Ni plating surface;Au flash plating
                  (except the terminal tips)or base;Ni plating surface;
                  Sn flash plating (except the terminal tips)
3.Characteristics:
  3-1.Rated voltage:60V AC/DC
  3-2.Rated curren:0.3A/contact(Max.5A at total contact)
  3.3.Insulation resistance:Min.1000MΩ(initial)
  3.4.Breakdown voltage:150V AC fou 1 min.
  3-5.Saltwater spray resistance(header and socket mated:24 hours,
     insulact resistance max.90mΩ.
  3-6Contact resistance:Max.90mΩ.
  3-7.Ambient temperature:-55℃~+85℃.
  3-8.Storage temperature:-55℃~+88℃(product only);
                          -40℃~+50℃(emboss packing).
  3-9.Composite insertion force:Max.0.918N/contacts X contacts(initial).
  3-10.Composite removal force:Min.0.165N/contacts X contacts.
  3-11.Post holding force:Min.0.49N/contacts.
  3-12.Insertion and removal life:50times.
