7.62mm Pitch PCB Screw Terminal Blocks

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/Month
Supply Ability:	2000K/Month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO 9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

Barrier Terminal Block Pitch:7.62mm

Specifications:
Standard: UL IEC
Voltage Rating : 300V 450V
Current Rating：15A 24A
Wire range：22－12AWG 2.5mm²
Withstanding voltage: AC2000V/1Min
Insulation resistance: 500MΩ/DC500V
Temp Rang: -40°C ~ +105°C
Max Torque: 0.5Nm(4.5lb.in)
Housing：PA66, UL94V-0
Screw：Steel, M3.0 Ni-Plated
Terminal：Brass.0.8t,Tin Plated

Terminal：Brass.0.8t,Tin Plated
Pitch: 7.62mm
Poles: 2P-XXP

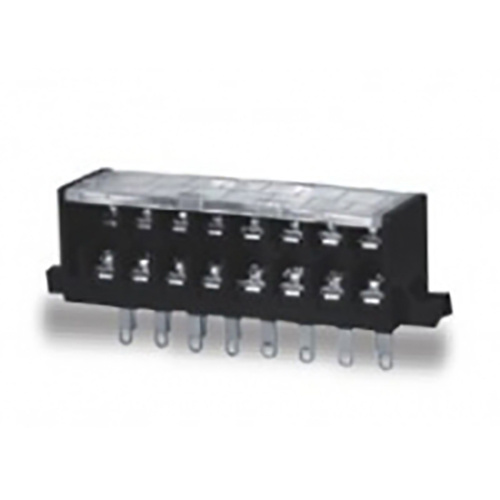

AT824-7.62XXX-02 Barrier Terminal Block Pitch7.62mm
