6.35mm Pitch PCB Barrier Terminal Block

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/Month
Supply Ability:	2000K/Month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO 9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

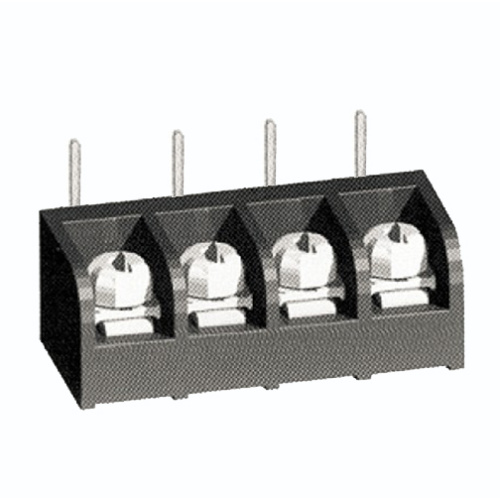

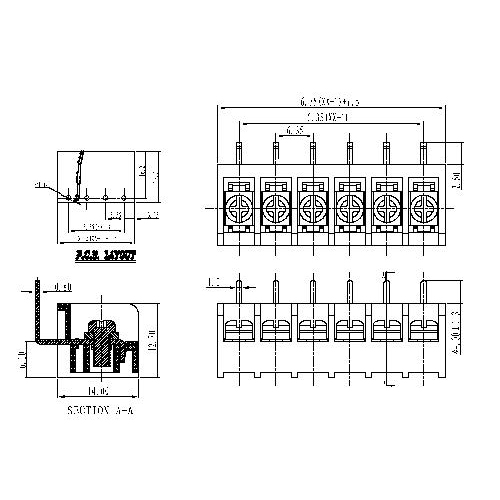

Barrier Terminal Block Pitch:6.35mm

Specifications:
Standard: UL IEC
Voltage Rating: 300V 450V
Current Rating: 10A 13.5A
Wire range: 22－16AWG 1.0mm²
Withstanding voltage: AC2000V/1Min
Insulation resistance: 500MΩ/DC500V
Temp Rang: -40°C ~ +105°C
Max Torque: 0.5Nm(4.5lb.in)
Housing：PA66, UL94V-0
Screw：Steel, M3.0 Ni-Plated
Terminal：Brass.0.8t,Tin Plated
Pitch: 6.35mm
Poles: 2P-30P
