6.35mm 20P Male Straight DIP Power Connector

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	SHENZHEN,

Product Description

6.35mm 20P Male Straight DIP Power Connector

Specifications:
1.Material:
A.Terminal:Phosphor Copper C5191
B.Housing:PPA UL94V-0 Color: Black
2.Plating:
Signal Contact: 30u-50u Nickel Plated, 1U Gold Plated
Power Contact: 30u-50u Nickel Plated, 1U Gold Plated3.
3.Electrical Performance Requirements:
Rated Voltage: Signal Contact: 50V; Power Contact: 250V
Rated Current: Power Contact Max 40A; Signal Contacts Max 2.5A;
Withstand Voltage:Leakage Current: Signal Contact Voltage: 1000 VDC Less
Than 1 mA / 1Min, Between Power Contacts and Between Powerand Contacts:2500Vdc 1MIN
Insulation Resistance: Between Signal Contacts: 2000MΩ;
Between Power Contacts: 2000M Ω.
Contact Resistance:Power Contact≤2mΩ Signal Contact:20mΩ
Solder Temperature：260°C 10S
4.Mechanical Properties:
Plugging Life:500 Times.
Insertion Force:40N MAX Withdrawal Force:10N MIN
5.Working Temperature: -40~+125℃

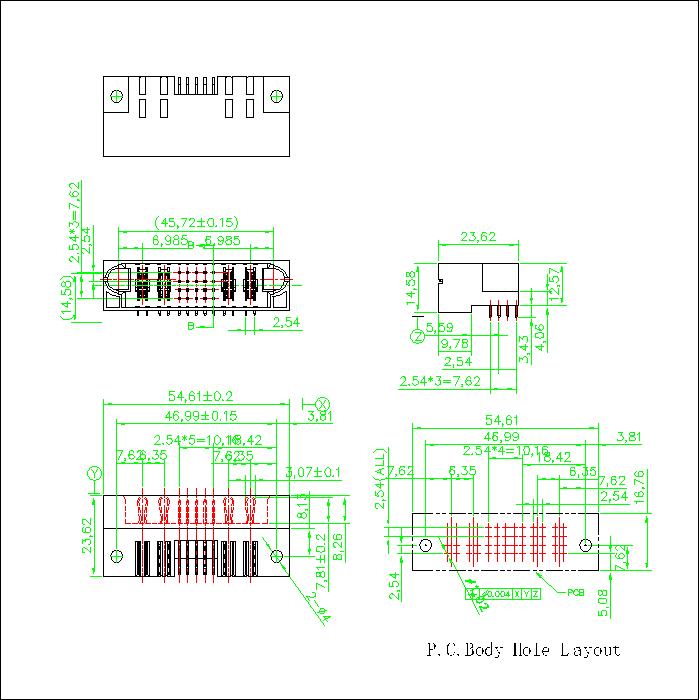

PSPM6.35S-022002G0G0APX 6.35MM 2P Power+20P Sinal+2P Power Male Straight Dip Power Connector

PSPM6.35S-022002G0G0APX 6.35MM 2P Power+20P Sinal+2P Power Male Straight Dip Power Connector
