RJ45 JACK Side Entry, Half Shielded 1X4P

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/Month
Supply Ability:	2000K/Month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CIF,EXW
Certificate:	ISO 9001-2015
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	Shenzhen

Product Description

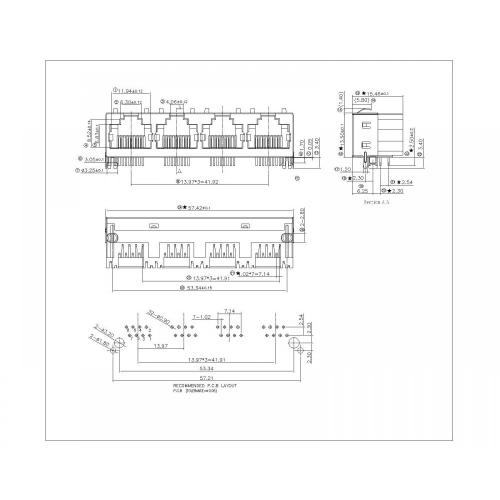

ATRJ5926-8P-8C-X-B-C RJ45 JACK Side Entry, Half Shielded 1X4P Front 2.3

SPECIFICATION NOTES:
ELECTRICAL:
1. VOLTAGE RATING: 125 VAC RMS
2. CURRENT RATING: 1.5 AMP
3. CONTACT RESISTANCE: 20mΩ MAX.
4. INSULATION RESISTANCE: 1000MΩ MIN. AT 500V DC.
5. DIELECTRIC STRENGTH: 1000 V AC OR 1500V DC
RMS AT 0.5mA 50Hz/60Hz FOR 1 MINUTE
MECHANICAL:
1. CONTACT MATERIAL: PHOSPHOR BRONZE ∅0.46
2. PLATING:PLATING AT CONTACT AREA,NICKEL 30U MIN. OVER ALL.
3. OPERATING LIFE:750 CYCLES MIN.
4. MATING/UNMATING FORCE: 30N/3.06KGf MAX.
5. RETENTION STRENGTH: 50N MIN. FOR 60S士5S
ENVIRONMENTAL:
1. STORAGE:-40℃ TO +85℃ RELATIVE HUMIDITY<80%
2. GUARANTEE PERIOD: 12 MONTHS
3. OPERATION: -40℃ TO +85℃
4. WAVE SOLDERING TEMPERATURE: 260土5℃ 5~10s

ATRJ5926-8P-8C-X-B-C RJ45 JACK Side Entry, Half Shielded 1X4P Front 2.3
