RJ45 JACK Top Entry Shielded 2X4P

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CFR, EXW, FCA

Min. Order:: 1000 Bag/Bags

Min. Order:: 1000 Bag/Bags

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Port:: ShenZhen, ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000K/month
Supply Ability:	100000K/month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air
Port:	ShenZhen,ShenZhen

Product Description

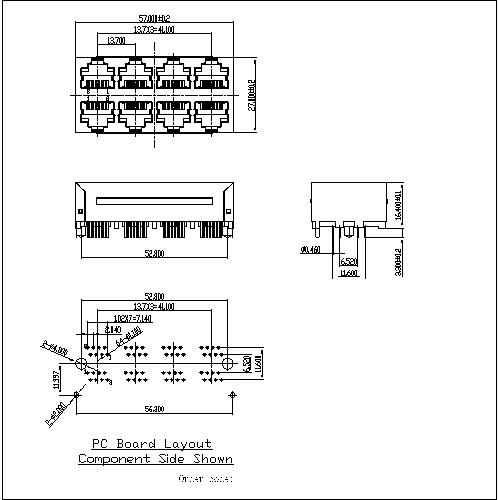

RJ45 JACK Top Entry Shielded,2X4P

ATRJ5924-8P8C-X-D-H

SPECIFICATIONS:
1.Material:
1.1 Housing:Glass Filled Polyester UL94V-0
1.2 Contact:Phosphor Bronze,∅0.46mm
1.3 Plating:Gold Plating Over Nickel
2.Electrical Characteristic:
2.1 Voltage Rating:125 VAC RMS
2.2 Current Rating:1.5 AMP
2.3 Contact Resistance:45 Milliohms Max
2.4 Insulation Resistance:1000 Megohms Min@500V DC
2.5 Dielectric Withstangding Resistance:1000V AC
RMS 60HZ,1 Min
3.Mechanical Characteristic:
3.1 Durrability:750 Cycles Min
3.2 PCB Retention PRE-Solder:1 LB Min
4.Environmental:
4.1 Storage:-40°C To 85°C
4.2 Operation:0°C To 70°C
Mates With Modular Plug Conforming To FCC Part 68,Subpart F
