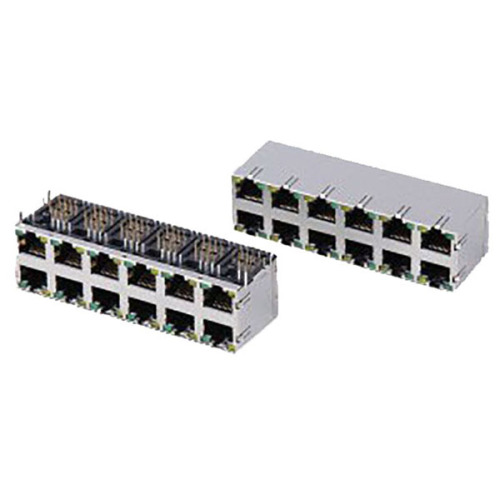

2X6P Shielded RJ45 Jack Connector

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal,L/C
Incoterm:	FOB,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	ShenZhen

Product Description

RJ45 Jack Side Entry 2X6P Shielded With LED & EMI

Specifications:
1.Material:
1.1 Housing:Glass Filled Polyester UL94V-0
1.2 Contact:Phosphor Bronze,∅0.46mm
1.3 Plating:Gold Plating Over Nickel
2.Electrical Characteristic:
2.1 Voltage Rating:125 VAC RMS
2.2 Current Rating:1.5 AMP
2.3 Contact Resistance:45 Milliohms Max
2.4 Insulation Resistance:1000 Megohms Min @ 500V DC
2.5 Dielectric Withstangding Resistance:1000V AC RMS 60HZ,1 Min
3.Mechanical Characteristic:
3.1 Durrability:750 Cycles Min
3.2 PCB Retention PRE-Solder:1 LB Min
4.Environmental:
4.1 Storage: -40°C To 85°C
4.2 Operation: 0°C To 70°C
