2X4P RJ45 Jack W/O Shielded

$500.00

≥1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Air, Express

Port:: ShenZhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000K/month
Supply Ability:	2000K/month
Payment Type:	T/T,Paypal
Incoterm:	FOB,CFR,EXW,FCA
Certificate:	ISO9001
HS Code:	8536909000
Transportation:	Ocean,Air,Express
Port:	ShenZhen

Product Description

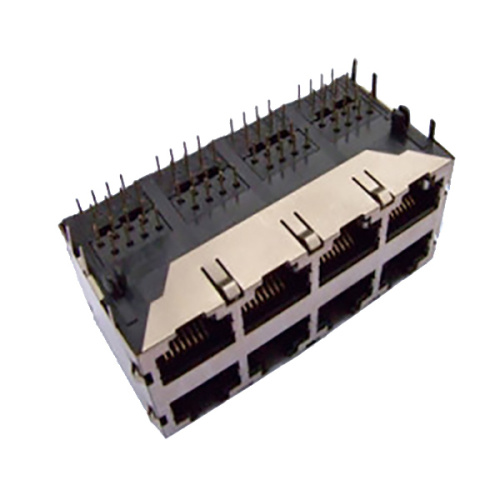

RJ45 Jack Side Entry W/O Shielded 2X4P

MATERIAL:
1.HOUSING MATERIAL:PBT,PA66,PA6T UL94V-0.
2.CONTACT MATERIAL:ROUND PINS-0.46mm DIAMETER PHOSPHOR BRONZE GOLD PLATING OVER NICKEL
4.SHIELD:0.2mmTHICKNESS COPPER WITH NICKEL PLATEI
ELECTRICAL
1.VOLTAGE RATING:125V AC RMS
2.CURRENT RATING:1.5AMP
3.CONTACT RESISTANCE:30 MILLIOHMS MAX
4.INSULATION RESISTANCE 500 MEGOHMS MIN @500V DC
5.DIELECTRIC WITHSTANDING RESISTANCE:1000V AC RMS 50Hz. 1MIN
6.DURABILITY:750 CYCLES MIN

7.OPERATION:-40°C TO 85°C

ATRJ55921-8P8C-X-A-J-X RJ45 Jack Side Entry WO Shielded 2X4P
